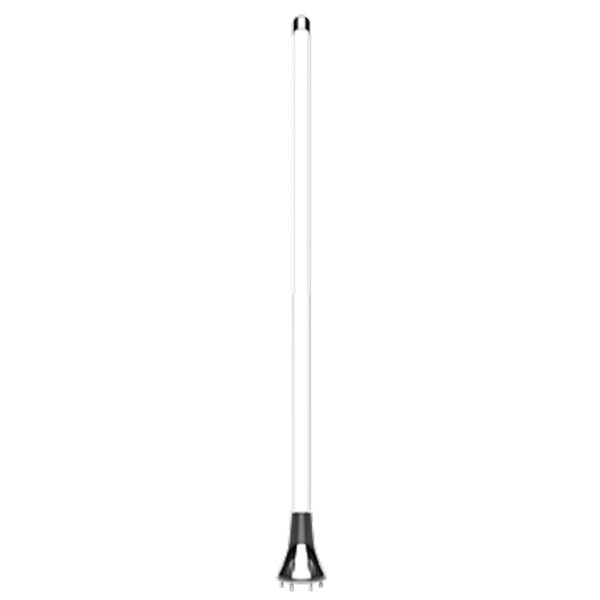

Poynting OMNI-914 Marine 5G/LTE Omni Antenna, 4x4 MIMO, 617-4200 MHz, 8 dBi

Poynting

Poynting OMNI-914 Marine 5G/LTE Omni Antenna, 4x4 MIMO, 617-4200 MHz, 8 dBi

0 review Write a Review

Poynting OMNI-914 omni-directional marine antenna for LTE and 5G networks, with MIMO connectivity and rugged protection for marine and coastal installations.

SKU: ANT-PY-00132

MPN: A-OMNI-0914-V1-02

Poynting OMNI-914 Marine 5G/LTE Omni Antenna, 4x4 MIMO, 617-4200 MHz, 8 dBi

Product Details
Specifications
Additional Information

Product Details

Omni-Directional Marine Antenna for 4G and 5G MIMO Connectivity

The Poynting OMNI-914 is an ultra-wideband omni-directional antenna for marine, coastal and industrial cellular installations. Four vertically separated high-gain radiating elements are housed within a single radome, supporting MIMO connectivity and balanced signal reception across contemporary LTE and 5G networks. Its omni-directional radiation pattern supports connectivity as vessels change position or heading, while the fibreglass radome and stainless steel components provide resistance to saltwater, UV exposure and demanding outdoor environments. Technical-Specification-A-OMNI-…

Key Features

Omni-directional coverage: Supports cellular reception from multiple directions without requiring precise antenna alignment.
MIMO connectivity: Four vertically separated radiating elements improve signal diversity, data throughput and connection reliability.
High-gain architecture: Four high-gain antenna elements provide controlled radiation patterns across the supported cellular spectrum.
LTE and 5G compatibility: Supports contemporary cellular networks for marine, commercial, industrial and agricultural applications.
Marine-grade construction: Fibreglass radome and stainless steel components provide resistance to saltwater, UV exposure and corrosive environments.
Weather-resistant enclosure: Protects internal antenna elements against dust and water ingress for exposed marine installations.
Flexible installation: Supports surface mounting, with optional mounting hardware available for pole and wall installations.

The OMNI-914 combines wideband cellular compatibility with multi-element MIMO performance for marine and coastal communication systems. Its rugged construction supports installation on yachts, boats, ferries and other exposed cellular applications.

Specifications

Frequency Bands	617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3400–4200 MHz
MIMO Configuration	4x4 MIMO
Ports	4
Maximum Gain	6 dBi @ 617–960 MHz; 5.5 dBi @ 1427–1517 MHz; 8 dBi @ 1710–2700 MHz; 5.5 dBi @ 3400–4200 MHz
Mean Gain	5 dBi @ 617–960 MHz; 2 dBi @ 1427–1517 MHz; 6 dBi @ 1710–2700 MHz; 3.5 dBi @ 3400–4200 MHz
VSWR	≤2.5:1 across 90% of supported bands
Feed Power Handling	10 W
Input Impedance	50 Ohm nominal
Polarisation	Linear Vertical
Coaxial Cable	Twin HDF 195
Cable Length	2 m
Connector Type	N-Type Female
Coaxial Cable Loss	0.385 dB/m @ 900 MHz; 0.507 dB/m @ 1500 MHz; 0.565 dB/m @ 1800 MHz; 0.788 dB/m @ 3000 MHz
DC Short	Yes
Dimensions	2454 mm x Ø145 mm including mounting base
Product Weight	5.86 kg
Radome Material	Fibreglass with 316 stainless steel caps
Radome Colour	Brilliant White, Pantone P 179-1C
Mounting	Surface, pole or wall
Wind Survival	<190 km/h
Operating Temperature	-40°C to +80°C
Operating Relative Humidity	Up to 98%
Storage Humidity	5% to 95% non-condensing
Storage Temperature	-40°C to +80°C
Ingress Protection	IP68
Impact Resistance	IK10
Salt Spray	MIL-STD 810G / ASTM B117
Flammability Rating	UL 94-HB
Compliance	CE and RoHS

Additional Information

Product Page

Datasheet

General Information
Manufacturer:	Poynting
Manufacturer Part Number:	A-OMNI-0914-V1-02
Barcode:	6009710924976
Packaging Details
Weight:	9.40 KGS
Width:	38.00 (cm)
Height:	21.00 (cm)
Depth:	251.00 (cm)
