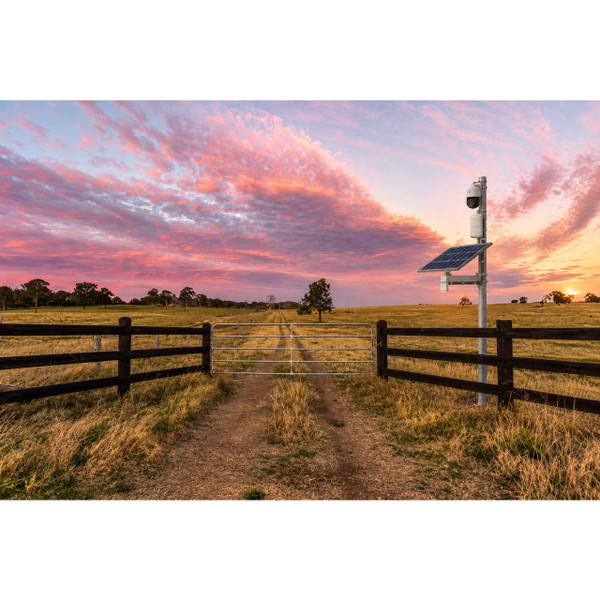

WatchAI Perimeter Detection & Auto Tracking PTZ + Solar Kit

Off-grid perimeter surveillance with intelligent detection, auto tracking and active deterrence

Monitor remote properties, boundaries, entrances and open areas without relying on mains power or wired network infrastructure. The system combines a 5MP PTZ camera with intelligent detection, automatic target tracking and active deterrence, a 120W solar power system with 60Ah LiFePO4 battery storage, and a long-range 5GHz wireless bridge for transmitting surveillance footage and camera data back to the site's network.

Key Features

• 5MP Intelligent Perimeter Monitoring: Captures video at up to 2880 × 1620 resolution while detecting faces, people and vehicles for more targeted security monitoring.
• Automatic Target Tracking: Deep-learning analytics allow the PTZ camera to automatically follow detected moving targets as they travel through the monitored area.
• Advanced Perimeter Analytics: Supports intrusion, single and double line crossing, loitering, wrong-way movement, illegal parking and smart motion detection, along with people counting, smoke and fire detection.
• Active Deterrence and Two-Way Audio: Integrated red and blue warning lights, sound-light warnings, built-in microphone and speaker provide visual and audible deterrence with remote two-way communication.
• 5× Optical PTZ Coverage: A motorised 2.7–13.5mm lens provides 5× optical and 16× digital zoom, with 0°–355° pan, -20° to +90° tilt and up to 400 preset positions for monitoring large areas from a single camera location.
• Day and Night Monitoring: Infrared illumination up to 50m and warm-light illumination up to 30m combine with True WDR, Defog, 3D DNR and anti-shake processing to support surveillance across changing lighting and environmental conditions.
• Local Video Storage: Supports microSD storage up to 512GB, allowing footage to be recorded directly at the remote camera location.
• IP66 Outdoor Construction: Metal and plastic construction with IP66 ingress protection supports outdoor deployment in exposed perimeter, gate and open-area installations.
• 120W Off-Grid Solar Power: A 120W monocrystalline solar panel, MPPT charging and 12.8V 60Ah LiFePO4 battery provide 768Wh of stored energy for locations without mains electricity.
• Battery Management and Protection: Integrated battery heating supports charging in cold conditions when PV input is available, with over-current, overcharge, over-discharge and short-circuit protection incorporated into the power system.
• Long-Range 5GHz Wireless Connectivity: Supports throughput up to 867Mbps and transmission distances up to 5km under suitable line-of-sight conditions, avoiding the need to run Ethernet cabling across the full distance.
• 16dBi Directional Wireless Link: An integrated 16dBi directional antenna provides focused long-distance wireless connectivity between the remote surveillance location and the site's network.
• Cloud-Managed Network Connection: Ruijie Cloud enables remote configuration, monitoring and firmware management of the wireless bridge.
• IP55 Outdoor Wireless Bridge: The IP55-rated wireless bridge supports outdoor deployment alongside the remote surveillance system.
• Installation Requirements: Adequate solar exposure and clear wireless line-of-sight are required. Trees, buildings and terrain can affect wireless performance, while available sunlight and connected system load influence solar autonomy.

Kit Includes

• 1 × WatchAI Active Deterrence Speed Dome 3" 5MP

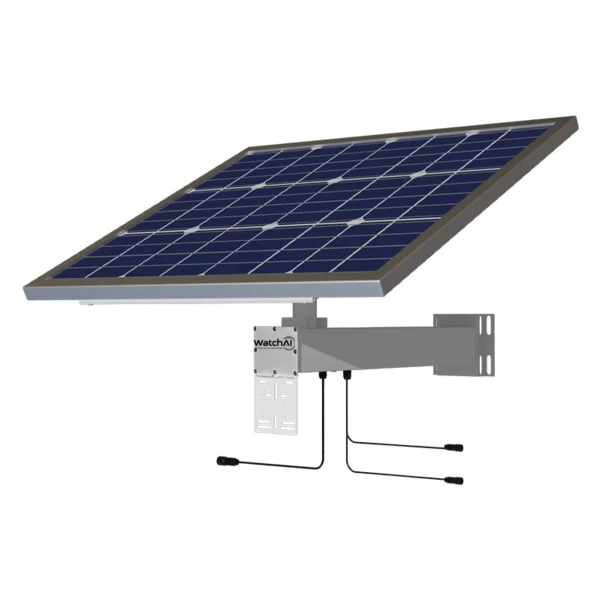

• 1 × WatchAI Solar Power System with Mounting Arm – 12V, 120W, 60Ah
• 1 × Ruijie Reyee EST350G 5GHz Wireless Bridge Base Station

The system brings perimeter detection, target tracking, active deterrence, off-grid power and wireless connectivity together for remote security applications. Solar exposure, camera placement, surveillance distances and wireless line-of-sight should be assessed during installation to achieve reliable operation.
