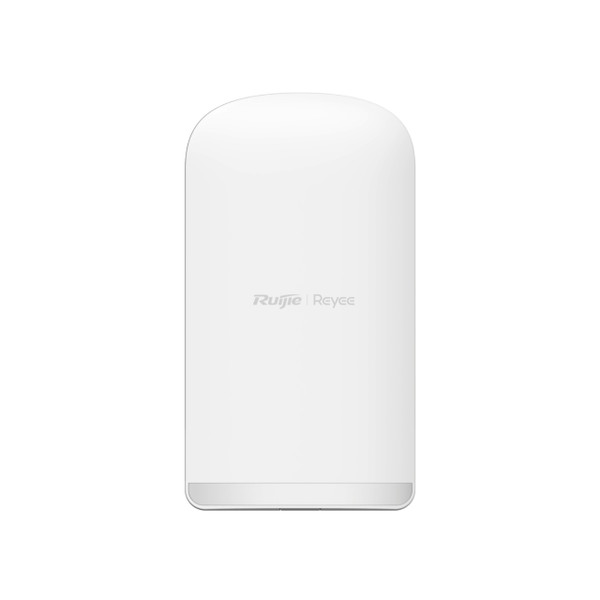

The Ruijie Reyee RG-EST350G is a 5GHz outdoor wireless bridge designed for long-distance point-to-point and point-to-multipoint applications. It supports up to 867 Mbps wireless throughput and delivers stable performance over distances up to 5 kilometres. Built with a 16 dBi directional antenna and IP55-rated housing, it withstands demanding outdoor environments. Three Gigabit Ethernet ports and flexible power options, including 802.3af/at PoE, provide versatile installation across surveillance, remote access, or backhaul links. Managed via Ruijie Cloud, it ensures seamless deployment and remote monitoring.
Reliable wireless bridge solution for secure outdoor point-to-point applications.
How to Pair
1) Power both units up

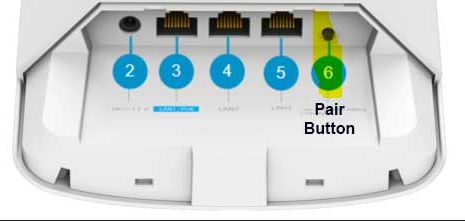

2) Press and hold the One-Touch Pairing button for less than 2s on the unit you want to be the base unit: The wireless bridge pairs with the remote wireless bridge unit (the signal LED blinks during pairing).
3) Once connected the signal LED will be solid green. The LED will stop blinking after 1 minute if no bridge connection is established.
| Product Specifications | |
|---|---|
| Model | RG-EST350G |
| Frequency Band | 5GHz |
| Wireless Speed | 867 Mbps |
| Transmission Distance | Up to 5 km (Line-of-Sight) |
| Antenna Type | 16 dBi Directional |
| Ethernet Ports | 3 × Gigabit Ethernet |
| Power Input | 12V DC, Passive PoE (24V), 802.3af/at PoE |
| IP Rating | IP55 (Weatherproof) |
| Management | Ruijie Cloud Platform |
| Pairing Method | Pre-configured Plug-and-Play |
| Mounting | Pole or Wall Mount |
| Application | Point-to-Point / Point-to-Multipoint |
| General Information | |
|---|---|
| Manufacturer: | Ruijie Reyee |
| Manufacturer Part Number: | RG-EST350G |
| Barcode: | 90012555 |
| Packaging Details | |
| Weight: | 2.50 KGS |
| Width: | 32.00 (cm) |
| Height: | 11.00 (cm) |
| Depth: | 40.00 (cm) |
