Peplink
Combining ultra-fast 5G connectivity, advanced Wi-Fi 6 performance, and Peplink’s powerful SpeedFusion technology, this industrial-grade router is designed for organisations that demand reliable, high-speed internet access in both fixed and mobile deployments. Powered by a next-generation multi-core processor, it delivers significantly improved performance over previous generations while supporting enterprise networking, remote sites, transportation, retail, public safety, and industrial applications. With a 2.5 Gigabit WAN port, dual Gigabit LAN ports, integrated GPS, redundant SIM support, and advanced cloud management capabilities, it provides a complete solution for resilient business connectivity. The included 1 Year PrimeCare subscription unlocks advanced management, support, and SpeedFusion capabilities for enhanced network reliability.
Supporting both fixed and mobile networking environments, it delivers enterprise-grade performance, advanced SD-WAN functionality, and resilient 5G connectivity for business-critical applications.
| Product Specifications | |
|---|---|
| Cellular Technology | 5G NSA/SA, LTE Cat 20 |
| 5G Data Rate | Up to 4.1 Gbps Download / 900 Mbps Upload |
| LTE Data Rate | Up to 2 Gbps Download / 211 Mbps Upload |
| SIM Support | Redundant Nano-SIM Slots |
| Wi-Fi Standard | Wi-Fi 6 Dual-Band 2x2 MU-MIMO |

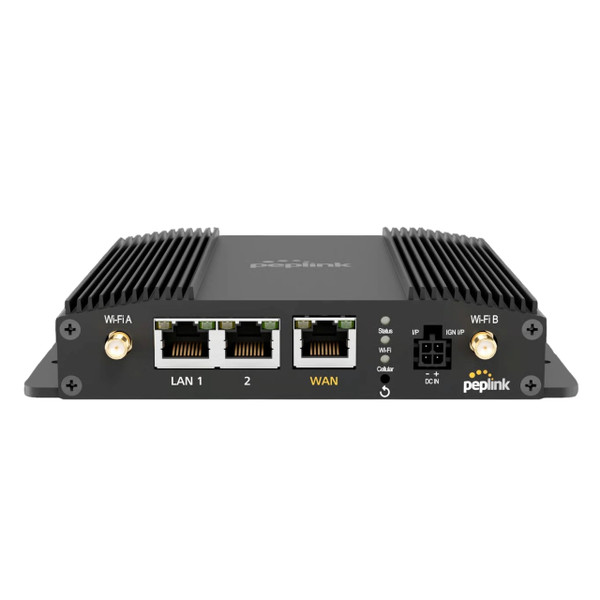

| WAN Interface | 1 x 2.5 Gigabit Ethernet WAN, 1 x Embedded 5G Modem |
| LAN Interface | 2 x Gigabit Ethernet LAN Ports |
| Router Throughput | 1 Gbps |
| SpeedFusion Throughput | 400 Mbps (No Encryption), 200 Mbps (256-bit AES) |
| SpeedFusion Features | Hot Failover, WAN Smoothing, Bandwidth Bonding |
| GPS | Integrated GPS Receiver |

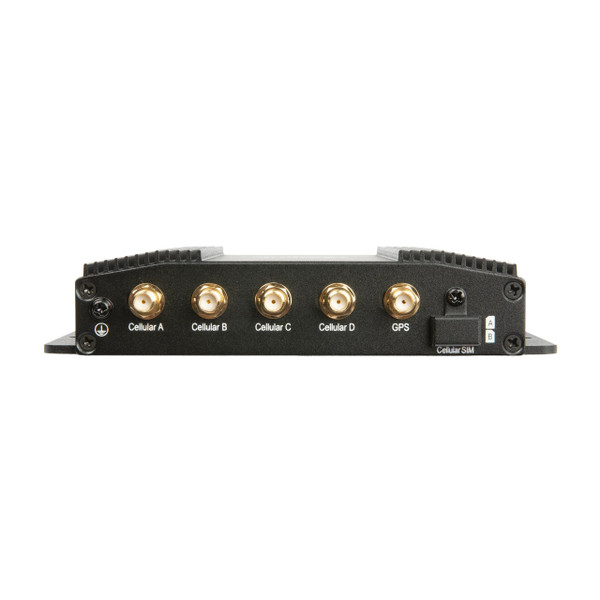

| Antenna Connectors | 4 x SMA Cellular, 2 x RP-SMA Wi-Fi, 1 x SMA GPS |
| Power Input | 10–30V DC with Ignition Sensing |
| Power Consumption | 8W Typical, 19W Maximum |
| Operating Temperature | -40°C to 65°C |
| Dimensions | 146.8 x 129 x 29.3 mm |
| Weight | 680 g |
| Warranty | 1 Year PrimeCare Included |
| General Information | |
|---|---|
| Manufacturer: | Peplink |
| Manufacturer Part Number: | MAX-BR1-PRO-5GK-T-PRM |
| Packaging Details | |
| Weight: | 1.10 KGS |
| Width: | 20.00 (cm) |
| Height: | 3.00 (cm) |
| Depth: | 22.00 (cm) |
