| 5G |
Sub-6Ghz |
SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2) |
| 4G (LTE) |
Category |
LTE Cat 20 2.0Gbps DL, 200Mbps UL |
| 3G |
Category |
42 Mbps DL, 5.76Mbps UL |
| SIM Cards |
Features |
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Signal Information |
Details |
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS |
Features |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD |
Features |
Supports sending and reading Unstructured Supplementary Service Data messages |
| Operator |
List |
Black/White list (by country or separate operators) |
| Multiple PDNs |
Features |
Possibility to use different PDNs for multiple network access and services |
| Band Management |
Features |
Band lock, Used band status display |
| APN |
Features |
Auto APN |
| Bridge Mode |
Features |
Direct connection (bridge) between mobile ISP and device on LAN |
| WiFi |
Standards |
802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition |
| WiFi Security |
Protocols |
WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| Ethernet |
LAN Ports |
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Ethernet |
WAN Port |
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Bluetooth |
Version |
Bluetooth 4.0 (LE) |
| VPN |
Protocols |
OpenVPN, IPsec, PPTP, L2TP, SSTP, DMVPN, ZeroTier, WireGuard |
| Power |
Input Voltage |
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
| Power |
PoE |
Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |

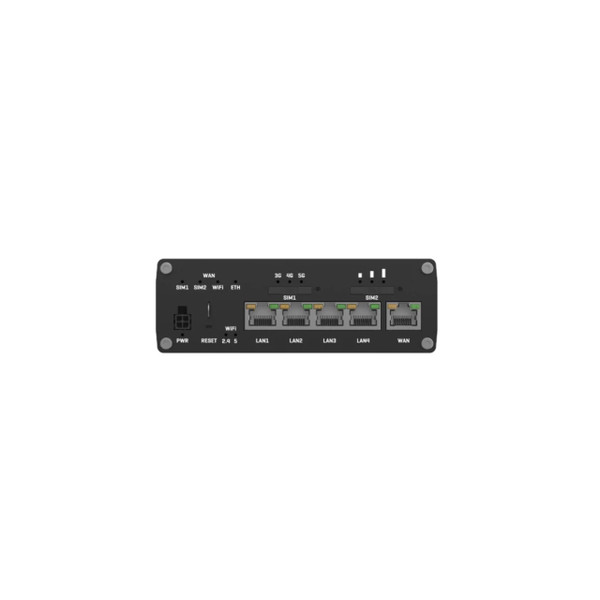

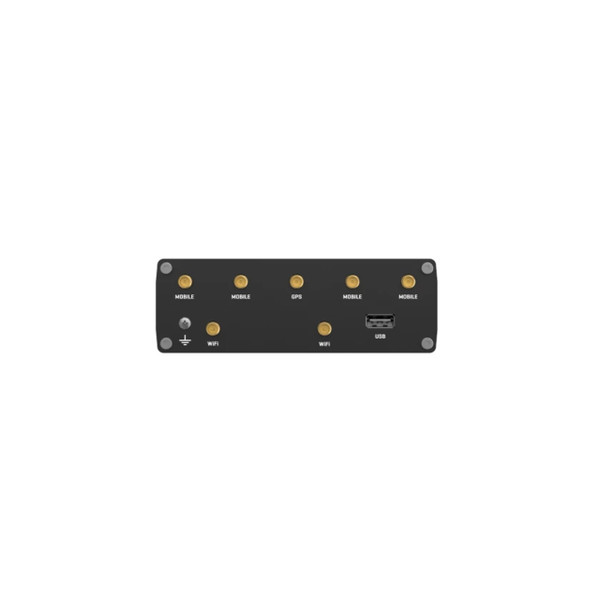

| Physical Interfaces |
Ports |
5 x RJ45 ports, 10/100/1000 Mbps, 1 x USB A port, 2 x SIM slots (Mini SIM - 2FF), 1 x 4 pin DC connector, 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
| Physical Interfaces |
Status LEDs |
3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G WiFi LEDs |
| Dimensions |
Size |
132 x 44.2 x 95.1 mm |
| Weight |
Value |
533 g |
| Operating Environment |
Temperature |
-40 °C to 75 °C |
| Operating Environment |
Humidity |
10% to 90% non-condensing |
| Firewall |
Features |
Port forward, traffic rules, custom rules |
| Routing |
Protocols |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network Protocols |
Protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP |
Support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection Monitoring |
Features |
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| IP Allocation |
Features |
Static and dynamic IP allocation, DHCP Relay |
| Traffic Management |
Features |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| WAN Options |
Features |
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
| Load Balancing |
Features |
Balance Internet traffic over multiple WAN connections |
| Network Backup |
Features |
DDNS |
| Remote Access |
Features |
Possibility to mount remote file system via SSH protocol |
| QoS |
Features |
Smart Queue Management (SQM) |
| Authentication |
Methods |
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall |
Configuration |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack Prevention |
Features |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN |
Features |
Port and tag-based VLAN separation |
| Mobile Quota Control |
Features |
Custom data limits for both SIM cards |
| Web Filter |
Features |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access Control |
Features |
Flexible access control of SSH, Web interface, CLI and Telnet |
| IPsec |
Encryption |
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE Tunnel |
Features |
GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP |
Features |
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel |
Features |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN |
Features |
Method of building scalable IPsec VPNs |
| SSTP |
Features |
SSTP client instance support |
| OpenVPN Encryption |
Methods |
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| ZeroTier |
Features |
ZeroTier VPN client support |
| WireGuard |
Features |
WireGuard VPN client and server support |
| Modbus |
TCP Master |
Supported functions |
| Modbus |
TCP Slave |
Modbus TCP custom register block requests, which read/write to a file inside the router, and can be used to extend Modbus TCP Client functionality |
| MQTT |
Gateway |
Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| Data to Server |
Protocols |
HTTP(S), MQTT, Azure MQTT, Kinesis |
| IoT Platforms |
Azure IoT Hub |
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| IoT Platforms |
Cumulocity |
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| IoT Platforms |
Clouds of Things |
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| IoT Platforms |
ThingWorx |
Allows monitoring of: Device data, Mobile data, Network info, Availability |
| Firmware |
FOTA |
Update FW from file, check FW on server, configuration profiles, configuration backup |
| Monitoring & Management |
Web UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| Monitoring & Management |
SSH |
SSH (v1, v2) |
| Monitoring & Management |
SNMP |
SNMP (v1, v2, v3), SNMP Trap |
| Monitoring & Management |
MQTT |
MQTT Broker, MQTT publisher |
| Monitoring & Management |
TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| Monitoring & Management |
JSON-RPC |
Management API over HTTP/HTTPS |
| Monitoring & Management |
RMS |
Teltonika Remote Management System (RMS) |
| CPU |
Specifications |
Quad-core ARM Cortex A7, 717 MHz |
| RAM |
Specifications |
256 MB (100 MB available for userspace) |
| Storage |
Flash |
256 MB (80 MB available for userspace) |
| Operating System |
Specifications |
RutOS (OpenWrt based Linux OS) |
| Development Tools |
Specifications |
Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| GNSS |
Features |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| GNSS |
Coordinates |
GNSS coordinates via WebUI, SMS, TAVL, RMS |
| Coordinates |
Protocols |
NMEA 0183 |
| Server Software |
Support |
TAVL, RMS |
| USB |
Data Rate |
USB 2.0 |
| Applications |
Support |
Samba share, USB-to-serial, Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
| Input |
Specifications |
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output |
Specifications |
1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events |
Support |
Email, RMS, SMS |
| Storage Formats |
Specifications |
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Geofencing |
Support |
Configurable multiple geofence zones |
| I/O Juggler |
Support |
Allows to set certain I/O conditions to initiate event |
| Power Consumption |
Specifications |
Idle: < 4W, Max: 18W |
