STARBEAM Starlink Mini DC to PoE Power Converter with USB

0 review Write a Review

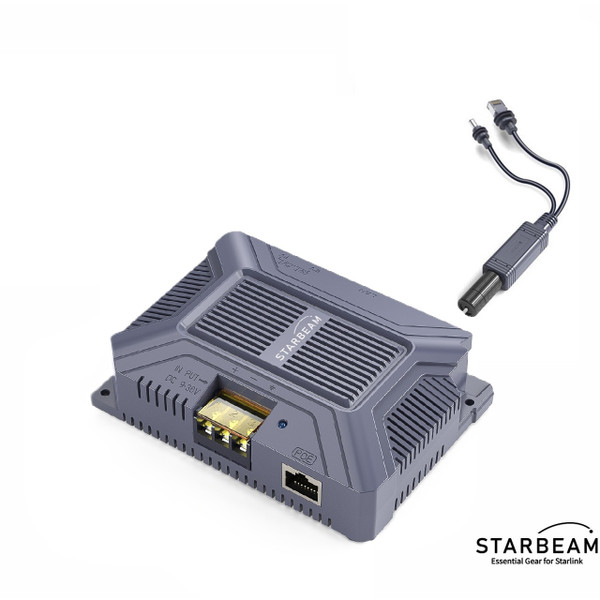

This 200W passive PoE injector will power a Starlink Mini dish directly from a 9-36V DC source. Also features a USB port for powering a low energy consumption WiFi travel router.

SKU: SAT-SB-00535

MPN: SAT-SB-00535

STARBEAM Starlink Mini DC to PoE Power Converter with USB

Product Details
Specifications
Additional Information

Product Details

Reliable DC to PoE Power Solution for Starlink Mini Systems

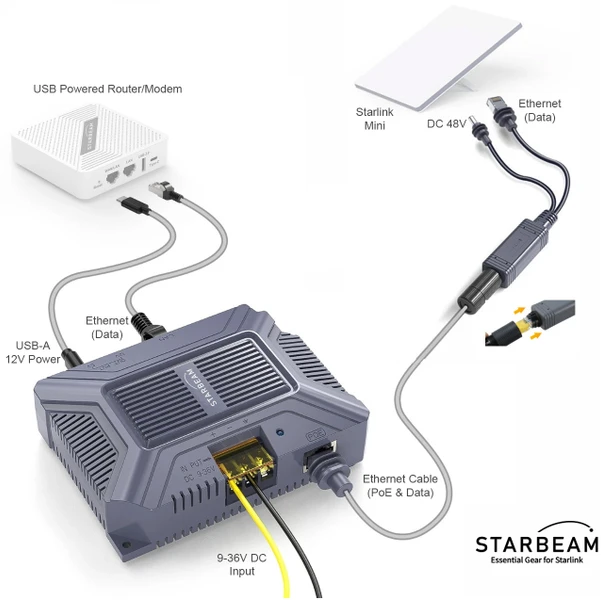

The STARBEAM DC to PoE Power Converter with USB delivers a clean, efficient power and data connection for Starlink Mini installations. Combined with the dedicated PoE splitter cable, it simplifies remote or off-grid setups by enabling both power and Ethernet over a single cable—ideal for mobile, marine, or standalone applications.

Key Features

Dual Power Output Design: Converts 9–36 V DC input to stable passive PoE output up to 200 W, with additional USB-A (12 V/3 A) and USB-C (5 V/3 A) ports for auxiliary device power.

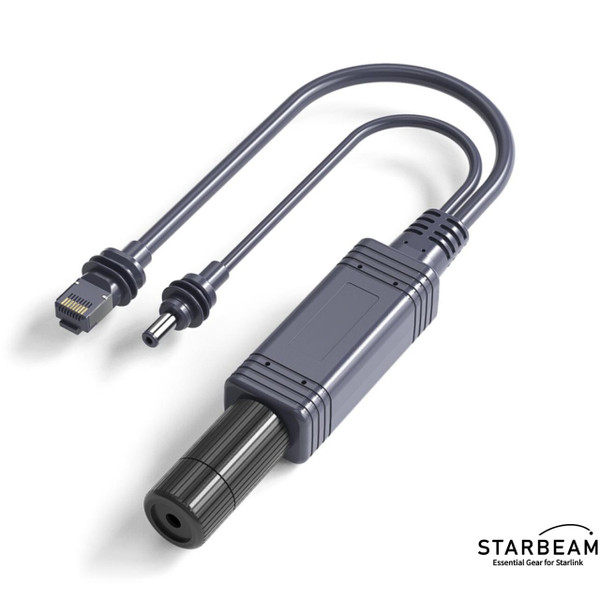

Starlink Mini Compatibility: Includes a Gigabit PoE splitter cable that separates 48 V DC power and data at the dish end for seamless Starlink Mini operation.
Single Cable Efficiency: Transmits both power and data through one Ethernet cable, reducing clutter and voltage loss over long runs.
Comprehensive Protection: Built-in surge protection (±8 kV) and ESD protection (±15 kV air, ±8 kV contact) safeguard equipment in harsh environments.
Off-Grid Optimisation: Eliminates the need for DC-AC inverters, increasing efficiency for solar, vehicle, or battery-powered systems.
Gigabit Network Performance: Supports 10/100/1000 Mbps speeds for reliable, high-speed connectivity.
Durable and Compact Build: Engineered for easy installation in confined or mobile setups with an operating range of −20 °C to +55 °C.

Kit Includes

Power your Starlink Mini efficiently while simplifying wiring, reducing energy loss, and maintaining strong network reliability across remote installations.

Power a Peplink: Wanting to power a Peplink Router from this product via USB-A then also add a STARBEAM Starlink USB-A to Molex 4 Pin Molex Connector Cable for Peplink

Specifications

Parameter	Value
Pin Configuration	+V: 1, 2, 3, 6; -V: 4, 5, 7, 8

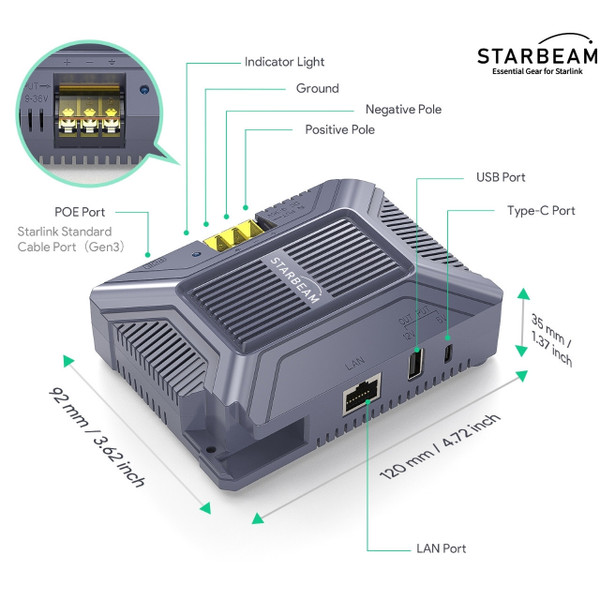

Interface	1 × LAN, 1 × SPX PoE, 1 × 3-Pin Power, 1 × USB Type-C, 1 × USB-A
Network Speed	10/100/1000 Mbps
Input	DC 9–36 V (minimum input power: 200 W)
SPX PoE Output	54 V, 3 A max.
USB-A Output	12 V, 3 A max.
USB Type-C Output	5 V, 3 A max.
Surge Protection	±8 kV (Differential), Class A
ESD Protection	±8 kV (Contact), ±15 kV (Air), Class A
Operating Temperature	-20 to +55°C
Operating Humidity	10%–90% (non-condensing)
Storage Temperature	-40 to +70°C
Power	200 W
Regulatory Approvals	RCM
