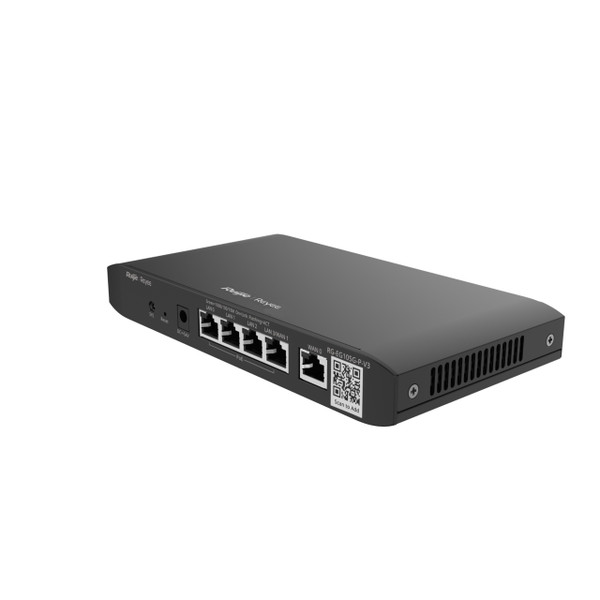

Ruijie Reyee
This advanced 5-port Gigabit PoE gateway is designed to provide seamless connectivity and efficient power distribution for small to medium-sized networks. With integrated PoE capabilities, it simplifies device deployment by delivering both data and power through a single cable. Featuring intelligent traffic management, security protection, and cloud-based remote management, it ensures a stable and secure networking experience. Its robust construction and energy-efficient design make it an ideal solution for businesses, offices, and smart home applications.
Designed for reliability and efficiency, this 5-port Gigabit PoE gateway is an excellent choice for secure and high-speed networking.
General | |
---|---|
Number of Fixed WAN Ports | 1 |
Number of Fixed LAN Ports | 3 |
Number of WAN Ports | 2 |
Number of LAN Ports | 4 |
WAN Port Rate | 1x 10/100/1000BASE-T |
LAN Port Rate | 4x 10/100/1000BASE-T |
Total Number of RJ45 Ports | 5 |
PoE | |
PoE Support | IEEE 802.3af/at, 4 LAN ports |
Max. PoE Power Budget | 54W |
Max. Power Output per PoE Port | 30W |
Hardware Specifications | |
Flash Memory | 32MB |
SDRAM | 128MB |
CPU | 880MHz × 2 |
Mounting | Desk-type |
Cooling | Fanless, natural cooling |
Operating Temperature | 0~40°C |
Storage Temperature | -40~70°C |
Operating Humidity | 10%~90% (non-condensing) |
Storage Humidity | 5%~95% (non-condensing) |
Power Supply Input | 100-240V AC, 50/60Hz |
Power Adapter Output | 54V DC, 1.11A |
Max. Power Consumption | <60W |
Software Features | |
Internet Connection Types | PPPoE, DHCP, Static IP |
Max. Throughput | 1000Mbps (Turbo Mode), 600Mbps (Normal Mode) |
VPN Support | IPSec, OpenVPN, PPTP, L2TP |
Max. Number of VPN Tunnels | 8 (IPSec), 16 (OpenVPN), 8 (L2TP), 8 (PPTP) |
Firewall and Security | Stateful firewall, website filtering, anti-network sharing |
Management | Ruijie Cloud, Web UI, Mobile App |
Concurrent Client Support | 100 |
General Information | |
---|---|
Manufacturer: | Ruijie Reyee |
Manufacturer Part Number: | RG-EG105G-P-V3 |
Barcode: | 6971693270497 |
Packaging Details | |
Weight: | 0.41 KGS |
Width: | 11.00 (cm) |
Height: | 3.00 (cm) |
Depth: | 21.00 (cm) |
