The OMNI-300 is a specialized omni-directional antenna designed to enhance communication in the Internet of Things (IoT) and Machine to Machine (M2M) sectors. This antenna is particularly tailored for LoRa, Helium, and other IoT technologies, operati…
SKU: ANT-PY-00050
MPN: A-OMNI-0300-V2-01
Shipping: Calculated at Checkout
$126.04 inc GST
($114.58 ex GST)
Hurry up! Current stock:

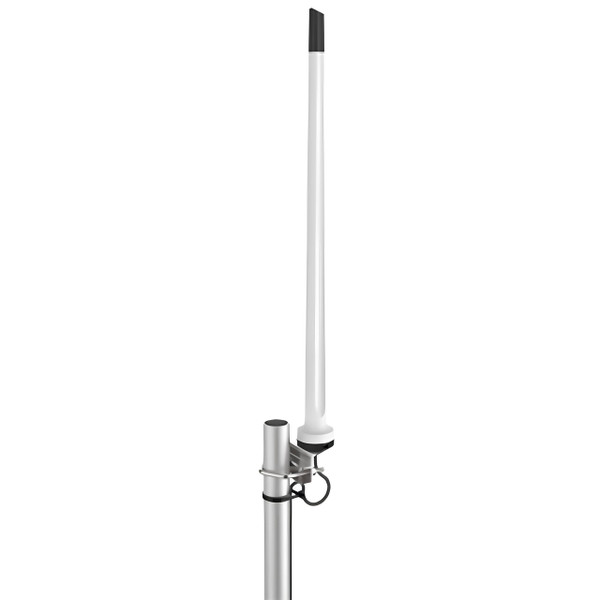

Poynting OMNI-300, Omni-Directional, LORA/HELIUM/IOT antenna, 868 to 930 MHz

$126.04 inc GST
($114.58 ex GST)
Discover the OMNI-300, an omni-directional LoRa/Helium/IoT antenna, operating between 868-930 MHz with a 4.5dBi gain. Ideal for IoT and M2M applications, it's versatile, weather-resistant (IP65), and ensures a stable, high-quality connection, making it a preferred choice for outdoor IoT deployments.



The OMNI-300 is a specialized omni-directional antenna designed to enhance communication in the Internet of Things (IoT) and Machine to Machine (M2M) sectors. This antenna is particularly tailored for LoRa, Helium, and other IoT technologies, operating within the 868 to 930 MHz frequency range. Key Features:
  • Medium Gain Omni-Directional Antenna: Provides a stable 4.5dBi gain, ensuring consistent signal strength over its coverage area.
  • Specific Frequency Coverage: Targets the 868 MHz to 930 MHz band, ideal for IoT/M2M deployments and covering LoRa and ISM frequency bands.
  • Versatile Installation: Can be easily mounted on both walls and poles, providing flexibility for various installation environments.
  • Robust Design: Comes with an IP65-rated enclosure, making it dust and water-resistant, suitable for outdoor use.
  • Connectivity Options: Equipped with N-Type and RP-SMA connectors, accommodating a wide range of device connections.
The OMNI-300 antenna is engineered to increase signal reliability and data throughput, which is crucial in IoT and M2M communication. Its omni-directional capability allows for long-distance communication, making it a popular choice among installers due to its versatility and high-quality connection. Technical Specifications:
Specification Details
Industry (Application) IoT, M2M & Smart Meters
Technology Helium/LoRa/Sigfox, LoRa, NB-IoT
Frequency Band 868-915MHz, 880-960MHz
Frequency Range 868 – 930 MHz
Gain 4.5dBi
Directionality Omni-Directional
Mounting Type Pole Mount, Wall Mount
Connectors N-Type, RP-SMA
MIMO SISO
Polarisation Linear Polarised
Environmental Rating IP65
Enclosure Name Mamba
Enclosure Size Medium
LTE Ports 1
General Information
Manufacturer: Poynting
Manufacturer Part Number: A-OMNI-0300-V2-01
Barcode: 6009710922033
Packaging Details
Weight: 0.51 KGS
Width: 13.00 (cm)
Height: 7.00 (cm)
Depth: 60.00 (cm)
