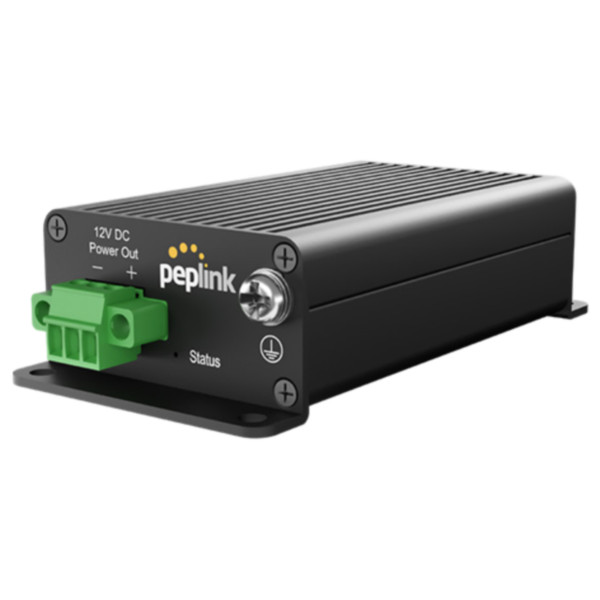

The Peplink Splitter MAX is a compact, rugged PoE splitter designed to deliver isolated 12V DC power and Ethernet to non-PoE equipment. Engineered for harsh environments, it provides galvanic isolation, surge protection, and efficient power conversion from IEEE 802.3bt/at/af PoE sources. It supports up to 48W output and operates across an extended temperature range, making it ideal for field deployments with antennas, routers, or peripherals.
Key Features

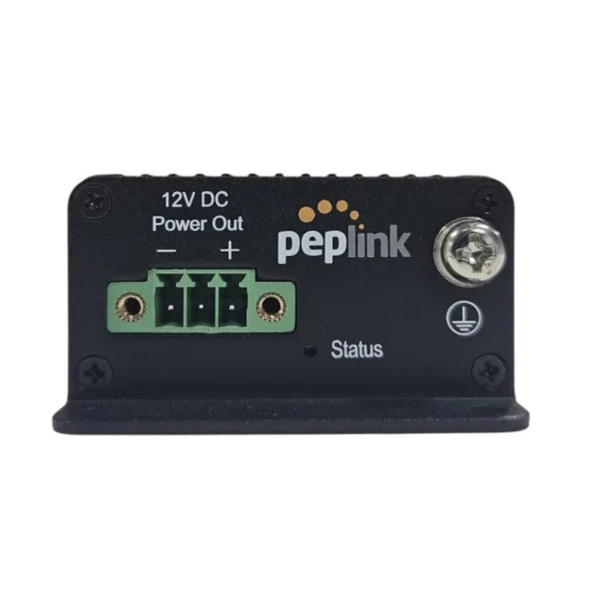

12V DC Output: Converts IEEE 802.3bt PoE input into a 12V 48W DC output for devices that do not support PoE natively.
Galvanic Isolation: Separates power and Ethernet lines to protect connected devices from electrical noise and interference.
Integrated Surge Protection: Shields devices with protection up to ±15 kV air ESD and ±4 kV surge on PoE input.
Wide Temperature Range: Operates from -40 °C to +70 °C, suitable for outdoor and industrial installations.
Compact and Durable: Measures just 102 × 50 × 26.5 mm and built with rugged anodised aluminium for tight, reliable integration.
High Efficiency: Offers 88–91% power conversion efficiency with minimal energy loss.
Flexible Compatibility: Works with any 12 V device under 48 W including Peplink routers and Antenna MAX systems.
This device ensures reliable power delivery and data connectivity for mission-critical deployments where space, performance, and protection are paramount.
| Product Specifications | |
|---|---|
| Input Standard | IEEE 802.3bt (802.3af/at compatible) |
| DC Output | 12V up to 48W |
| Efficiency | 88–91% |
| Ethernet Ports | 2 × 10/100/1000/2500 Mbps |
| Galvanic Isolation | Yes (Power and Ethernet) |
| Surge Protection | ±15 kV air, ±8 kV contact ESD; ±4 kV surge |
| Operating Temperature | -40 °C to +70 °C |
| Enclosure Material | Rugged anodised aluminium |
| Dimensions (L × W × H) | 102 × 50 × 26.5 mm |
| Weight | 142 g |
| Certifications | FCC, IC, CE, RoHS, REACH |
| Included Accessories | Splitter MAX, 100 mm DC cable |
