Peplink

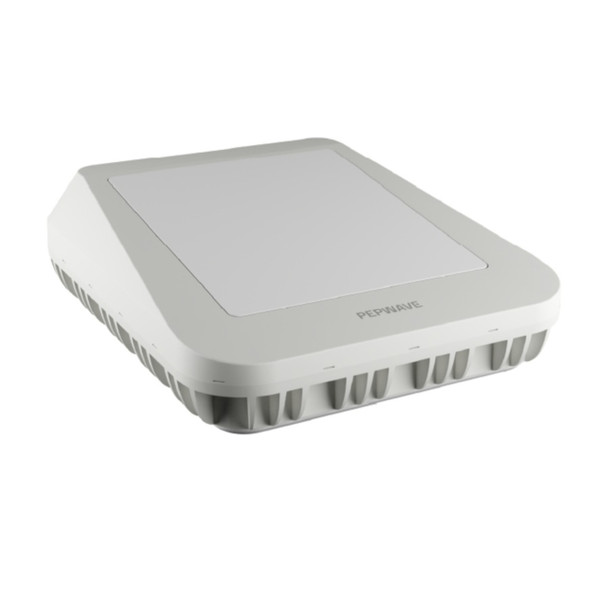

The Antenna MAX Duo combines dual-modem or dual-router integration with advanced multi-element antennas in a rugged, space-saving enclosure. It is designed to simplify installations by removing external RF cabling, ensuring minimal signal loss and streamlined deployment for maritime, mobile, and fixed applications.
This solution delivers reliability, performance, and flexibility in a single, compact form factor, reducing costs and maximising uptime across demanding deployments.
Product Specifications | |
---|---|
Antenna Elements | 8x 5G/LTE, 2x Wi-Fi, 1x GPS |
Frequency Range | 600–6000 MHz |
Peak Gain | Up to 8.1 dBi |
VSWR | < 2.5 across bands |
Input Impedance | 50 Ω |
Polarisation | Linear |
Connectors | SMA Male (Cellular, GPS), RP-SMA Male (Wi-Fi) |
Enclosure Rating | IP67, UV-resistant, flame-retardant |
Compliance | ROHS, REACH, WEEE, MIL-STD 810F |
Operating Temperature | -40°C to 80°C |
Product Dimensions | 122.5 mm height, 427.5 mm diameter |
Packaged Dimensions | 558 x 648 x 418 mm |
Mounting Options | Surface mount, pole mount, VSAT dome mount compatible |
Package Contents | Antenna MAX Duo, L-Mount set, screws, rubber supports, RJ45 glands and caps, adhesive pad, Ethernet cables |
General Information | |
---|---|
Manufacturer: | Peplink |
Manufacturer Part Number: | ANT-MAX-DUO |
Barcode: | 90012754 |
Packaging Details | |
Weight: | 0.24 KGS |
Width: | 21.00 (cm) |
Height: | 6.00 (cm) |
Depth: | 28.00 (cm) |
