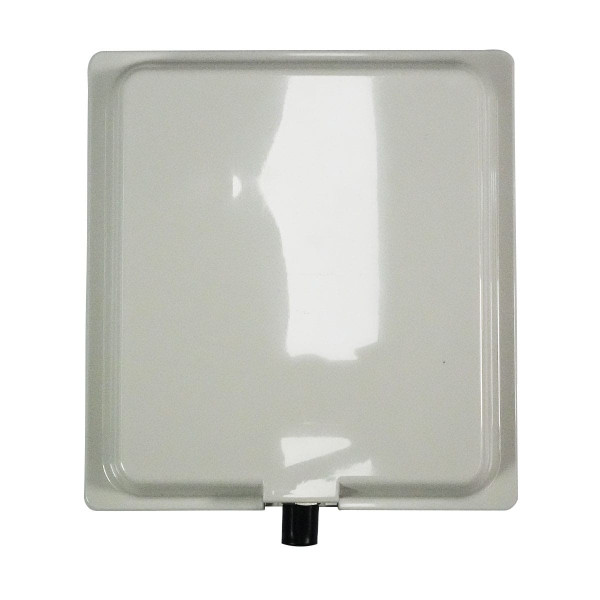

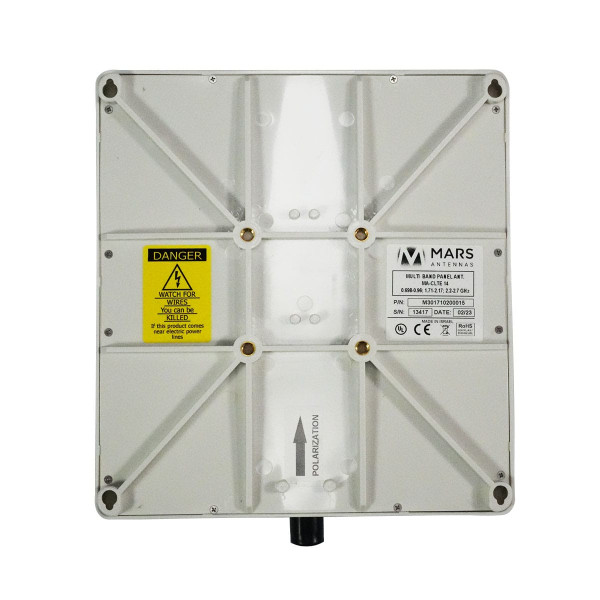

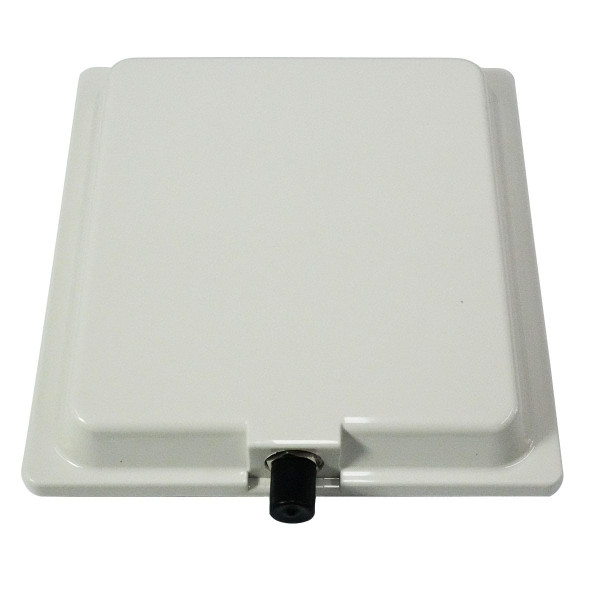

MARS 4G Panel Antenna, 5dBi, 698 to 2700 MHz, 4.3-10 Female

Broadband signal coverage for demanding indoor and outdoor installations

The MARS 4G Panel Antenna, 5dBi, 698 to 2700 MHz, 4.3-10 Female is designed to deliver consistent cellular signal performance across a wide range of frequency bands used by modern 4G LTE networks. Featuring a compact, low-profile design, this directional panel antenna helps improve signal strength and coverage in commercial, industrial, transport, and remote connectivity applications. Its UV-resistant enclosure, robust construction, and IP65 rating make it suitable for both indoor and outdoor deployments, while the 4.3-10 Female connector provides a secure, low-loss RF connection for professional installations.

Key Features

• Wide Frequency Coverage: Supports 698–806 MHz, 806–960 MHz, 1710–2170 MHz, and 2200–2700 MHz frequency bands, enabling compatibility with a broad range of cellular networks.
• High Gain Performance: Delivers between 5 dBi and 6.5 dBi gain depending on frequency, helping improve signal reception and transmission performance.
• 4.3-10 Female Connector: Provides a low-loss, high-performance RF connection suitable for professional cellular installations.
• Linear Vertical Polarisation: Ensures consistent signal transmission and reception for cellular communication applications.
• Low VSWR Design: Maintains a VSWR of 1.7:1 to 2:1 for efficient power transfer and reduced signal loss.
• Weather-Resistant Construction: IP65-rated enclosure protects against dust and water ingress for dependable outdoor operation.
• UV-Protected Radome: Polycarbonate radome resists UV exposure and environmental degradation for long service life.
• Wall Mountable Design: Supports flexible installation options to optimise antenna positioning and coverage.
• High Wind Resistance: Designed to withstand wind speeds of up to 200 km/h for exposed outdoor environments.
• Wide Operating Temperature Range: Operates reliably in temperatures from -40°C to +65°C.
• 50 Ohm Impedance: Provides compatibility with standard RF infrastructure and cellular equipment.
• Durable Reinforced Construction: Built with a metal-reinforced back plane and robust materials for long-term performance.
• Environmental Durability: Tested for resistance to vibration, salt fog, and flammability for demanding installation environments.

Ideal for fixed wireless, cellular coverage, and communications applications where improved signal quality, durability, and installation flexibility are required.
