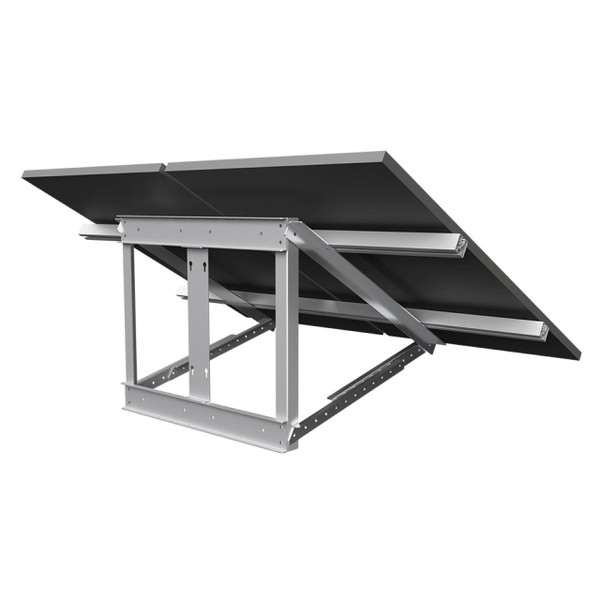

Fuzion Small Solar Mounting Structure

0 review Write a Review

Compact adjustable solar mounting structure for up to two panels and FTP-3XX units. Wall or pole-mount design with 5°–45° tilt range ensures efficient solar deployment.

SKU: ENG-FZ-00002

MPN: FTP-SOLAR001-G-R1

Fuzion Small Solar Mounting Structure

Product Details

Durable mounting solution for small solar power installations

The Small Solar Panel Mounting Structure provides a versatile and stable platform for Fuzion FTP-3XX systems. Designed for pole or wall installation, it supports up to two solar panels and optional enclosures beneath, ensuring reliable power generation for off-grid network equipment in outdoor environments.

Key Features

Dual-panel support: Accommodates up to two solar panels for increased power generation and system redundancy.
Flexible mounting options: Can be installed on poles with diameters between 50 mm and 110 mm or directly on walls using standard fasteners.
Adjustable tilt range: Allows panel angles between 5 ° and 45 ° to optimise solar exposure across different latitudes and seasons.
Integrated equipment support: Mounts up to two FTP-3XX units or an FTP-3XX with an additional equipment box under the panels.
Heavy-duty construction: Supplied with corrosion-resistant steel brackets, clamps and fasteners for long-term outdoor durability.
Simplified assembly process: Includes all required brackets, bolts, nuts and clamps with detailed step-by-step installation guidance.

Engineered for reliability and ease of installation, it offers a robust foundation for powering remote Fuzion systems using solar energy.

Specifications

Technical Specifications
Supported Panels	Up to two solar panels
Supported Equipment	Up to two FTP-3XX units or one FTP-3XX and one auxiliary box
Mounting Type	Pole or wall installation
Pole Diameter Range	50 mm – 110 mm
Tilt Adjustment	5 ° – 45 ° (nine discrete positions)
Material	Corrosion-resistant steel with galvanised finish
Included Hardware	Brackets, clamps, hex bolts (M6–M10), washers, self-locking nuts
Clamp Types	Middle Clamp H24 × 2 pcs; End Clamp PV-03-22 × 4 pcs
Tools Required	Two 10 mm spanners, two 13 mm spanners, one 17 mm spanner, one 6 mm Allen key
Installation Steps	8-step assembly including bracket setup, panel installation and tilt adjustment
Manufacturer	Fuzion Power Technologies ApS, Roskilde, Denmark
