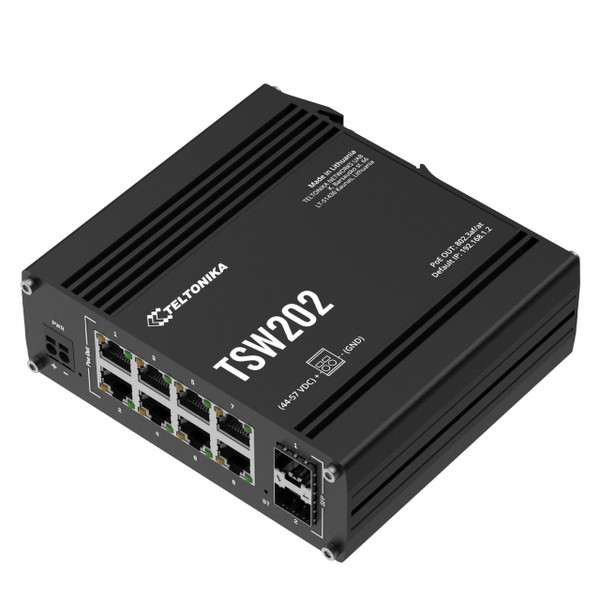

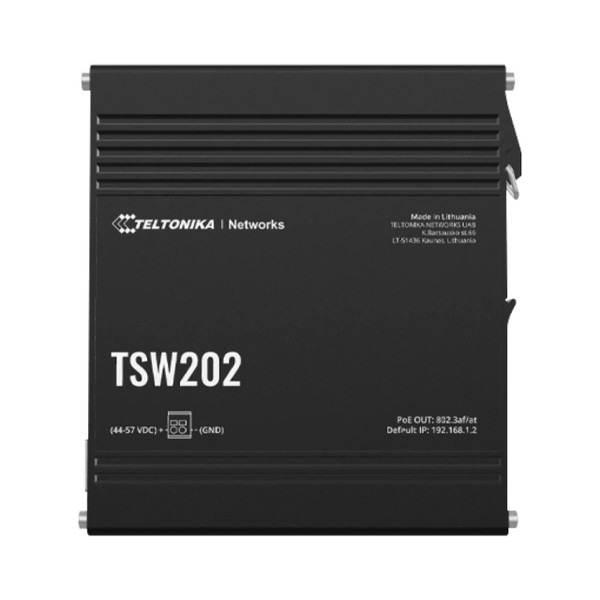

Teltonika TSW202 Managed PoE+ Ethernet Switch

Rugged Industrial Switch with PoE+ and Dual SFP for Fibre Uplinks

The Teltonika TSW202 is a robust Layer 2 managed switch designed for industrial applications requiring PoE+ and fibre connectivity. It features eight Gigabit Ethernet ports with 802.3af/at PoE output and two SFP ports for high-speed uplinks. With a total PoE budget of 240 W, DIN rail mounting, and an IP30-rated aluminium housing, this unit is well-suited to demanding networking environments.

Key Features

• Eight PoE+ Ethernet Ports: Supplies up to 30 W per port with a total PoE budget of 240 W, suitable for IP cameras and other PoE devices.
• Dual SFP Ports: Enables fibre uplinks for long-distance and interference-free networking.
• Layer 2 Managed Features: Supports VLANs, STP/RSTP, port mirroring, QoS, and static routing.
• Rugged Design: Aluminium housing, -40 °C to 75 °C operating range, and IP30 rating for industrial reliability.
• Advanced Diagnostics: Includes cable diagnostics, loop protection, bandwidth control, and storm control.
• Flexible Mounting Options: Integrated DIN rail mount, wall, or flat surface installation with grounding screw.
• Web UI and RMS Support: Offers firmware updates, configuration backup, and remote monitoring through Teltonika’s RMS platform.

Engineered for industrial automation, smart city infrastructure, and surveillance, this switch ensures high-performance network distribution in harsh conditions.
