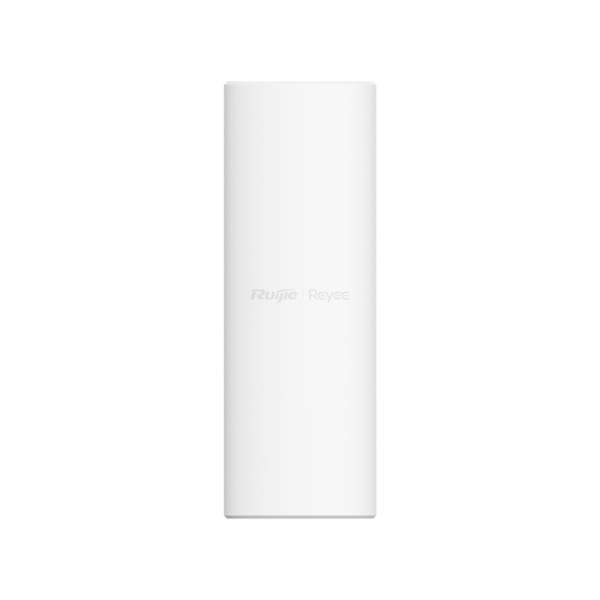

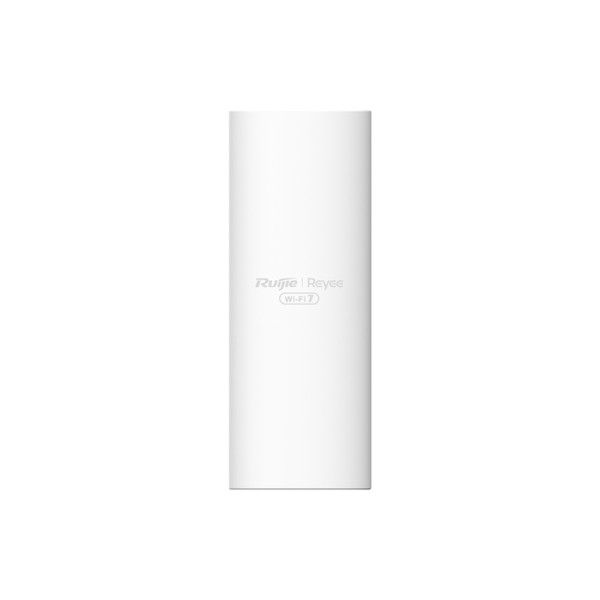

The Ruijie Reyee RG-RAP72Pro-OD is a versatile Wi-Fi 7 BE5040 access point designed to deliver ultra-fast connectivity for villas, retail businesses, and commercial spaces. With IP65-rated weather protection, AI roaming, and Reyee Mesh support, it provides seamless indoor and outdoor coverage. Its elegant design, integrated antennas, and wall or pole mounting options ensure easy deployment with reliable performance in any environment.
This next-generation access point ensures powerful, seamless, and reliable wireless coverage for both indoor and outdoor applications.
Product Specifications | |
---|---|
Product Type | Indoor/Outdoor Access Point |
Model | RG-RAP72Pro-OD |
Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be (Wi-Fi 4/5/6/7) |
Max Throughput | 5011 Mbps (4323 Mbps @ 5 GHz + 688 Mbps @ 2.4 GHz) |
Antennas | Integrated omni-directional, 6.28 dBi (5 GHz), 3.62 dBi (2.4 GHz) |
Spatial Streams | 3x3 MIMO (5 GHz), 2x2 MIMO (2.4 GHz) |
Ports | 1 × 2.5G BASE-T (PoE In) |
PoE Support | 802.3af / 802.3at |
Power Consumption | < 21 W |
Mounting Options | Wall or Pole |
Operating Temperature | -30 °C to +65 °C |
IP Rating | IP65 |
Dimensions | 90 × 46 × 239 mm |
Weight | ≤ 0.7 kg |
Recommended Clients | Up to 110 (16 @ 2.4 GHz + 94 @ 5 GHz) |
Management | Ruijie Cloud, Reyee App, Web Interface |
Security | WPA2, WPA3, 802.1X, Enhanced Open (OWE) |
General Information | |
---|---|
Manufacturer: | Ruijie Networks |
Manufacturer Part Number: | RG-RAP72Pro-OD |
Barcode: | 6976915002269 |
Packaging Details | |
Weight: | 0.70 KGS |
Width: | 9.00 (cm) |
Height: | 5.00 (cm) |
Depth: | 24.00 (cm) |
