| RG-RAP2266 Specifications |
| Feature |
Details |
| Wi-Fi Standards |
Wi-Fi6 (IEEE 802.11ax), Wi-Fi5 (IEEE 802.11ac Wave 2), Wi-Fi4 (IEEE 802.11n), IEEE 802.11a, IEEE 802.11b/g |
| MIMO |
2.4GHz, 2×2, MU-MIMO; 5GHz, 2×2, MU-MIMO |
| Max. Wi-Fi Speed |
2.4GHz: 574Mbps; 5GHz: 2402Mbps |
| Antenna |
5 Built-In Omnidirectional Antennas |
| Antenna Gain |
2.4 GHz: 3.53dBi; 5 GHz: 5.15dBi |
| Transmit Power (EIRP) |
European Union & United Kingdom:
2400-2483.5 MHz, ≤ 20 dBm; 5150-5350 MHz, ≤ 23 dBm; 5470-5725 MHz, ≤ 30 dBm
United States:
2400-2483.5 MHz, ≤ 36 dBm; 5150-5250 MHz, ≤ 36 dBm; 5250-5350 MHz, ≤ 30 dBm; 5470-5725 MHz, ≤ 30 dBm; 5725-5825 MHz, ≤ 36 dBm
Myanmar:
2400-2483.5 MHz, ≤ 23 dBm; 5725-5825 MHz, ≤ 30 dBm
Thailand:
2400-2483.5 MHz, ≤ 20 dBm; 5150-5350 MHz, ≤ 23 dBm; 5470-5725 MHz, ≤ 30 dBm; 5725-5825 MHz, ≤ 30 dBm
Indonesia:
2400-2483.5 MHz, ≤ 27 dBm; 5150-5350 MHz, ≤ 23 dBm; 5725-5825 MHz, ≤ 23 dBm
Egypt:
2400-2483.5 MHz, ≤ 20 dBm; 5150-5350 MHz, ≤ 23 dBm
|
| Fixed Ports |
1×10/100/1000 Base-T port; 1xDC port; 1×Reset button |
| Max. Clients |
512 |
| Recommended Clients |
110 |
| Max. SSIDs |
8 |
| Recommended Wi-Fi Coverage Radius |
2.4GHz: 40 meters; 5GHz: 70 meters |
| Max. Wi-Fi Coverage Radius |
150 meters |
| Operation Frequency Bands |
802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
|
| Power Adjustment |
Supported |
| Frequency Bandwidth |
2.4 GHz: Auto/20/40 MHz; 5 GHz: Auto/20/40/80/160 MHz |
| Roaming |
Layer 2 roaming, Layer 3 roaming, 802.11k/v/r |
| OFDMA |
Supported |
| Beamforming |
Supported |
| Target Wake Time (TWT) |
Not Supported |
| WMM |
Supported |
| Radar Signal Detection and Frequency Hopping (DFS) |
Supported |
| Wi-Fi Password Length |
16 bits |
| Security Mode |
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Blacklist and Whitelist |
Supported |
| Prevent Fragmentation Attack |
Not Supported |
| Prevent ICMP Attack |
Not Supported |
| Wi-Fi Optimization |
Supported |
| STA Limit |
Supported |
| Removing Low-RSSI STAs |
Supported |
| Adjusting Sending Rate of Beacon and Probe Response |
Supported |
| Syslog Recording Why Users Lose Connection |
Supported |
| Auto Channel and Power Adjustment on Cloud |
Supported |
| RSSI Threshold for STA Access |
Supported |
| Load Balancing |
Supported |
| Network Access Mode |
PPPoE Client, DHCP Client, Static IP |
| Avoidance of WAN IP Address Conflicts |
Not Supported |
| VLAN |
Supported |
| DHCP Server |
Supported |
| Cloud Management |
Supported |
| APP Management |
Supported |
| APP Upgrade |
Supported |
| APP Restart |
Supported |
| Scheduled Restart |
Supported |
| Default Access/Password |
10.44.77.254; admin |
| Local Upgrade |
Supported |
| Online Upgrade |
Supported |
| Backup |
Supported |
| Factory Reset |
Supported |
| Language |
Chinese, English |
| System Log |
Supported |
| Diagnostics |
Supported |
| Network Check |
Supported |
| LED Indicator |
1× system LED indicator |
| Buttons |
1×Reset button |
| Dimensions (W × D × H) |
220 mm x 220 mm x 52.6 mm (without the mounting bracket) |
| Weight |
≤ 0.5 kg (Without Mounting Bracket) |
| DC Port Dimensions |
Outer Diameter: 6.3 mm; Inner Diameter: 2.0 mm; Length: 9.8 mm |

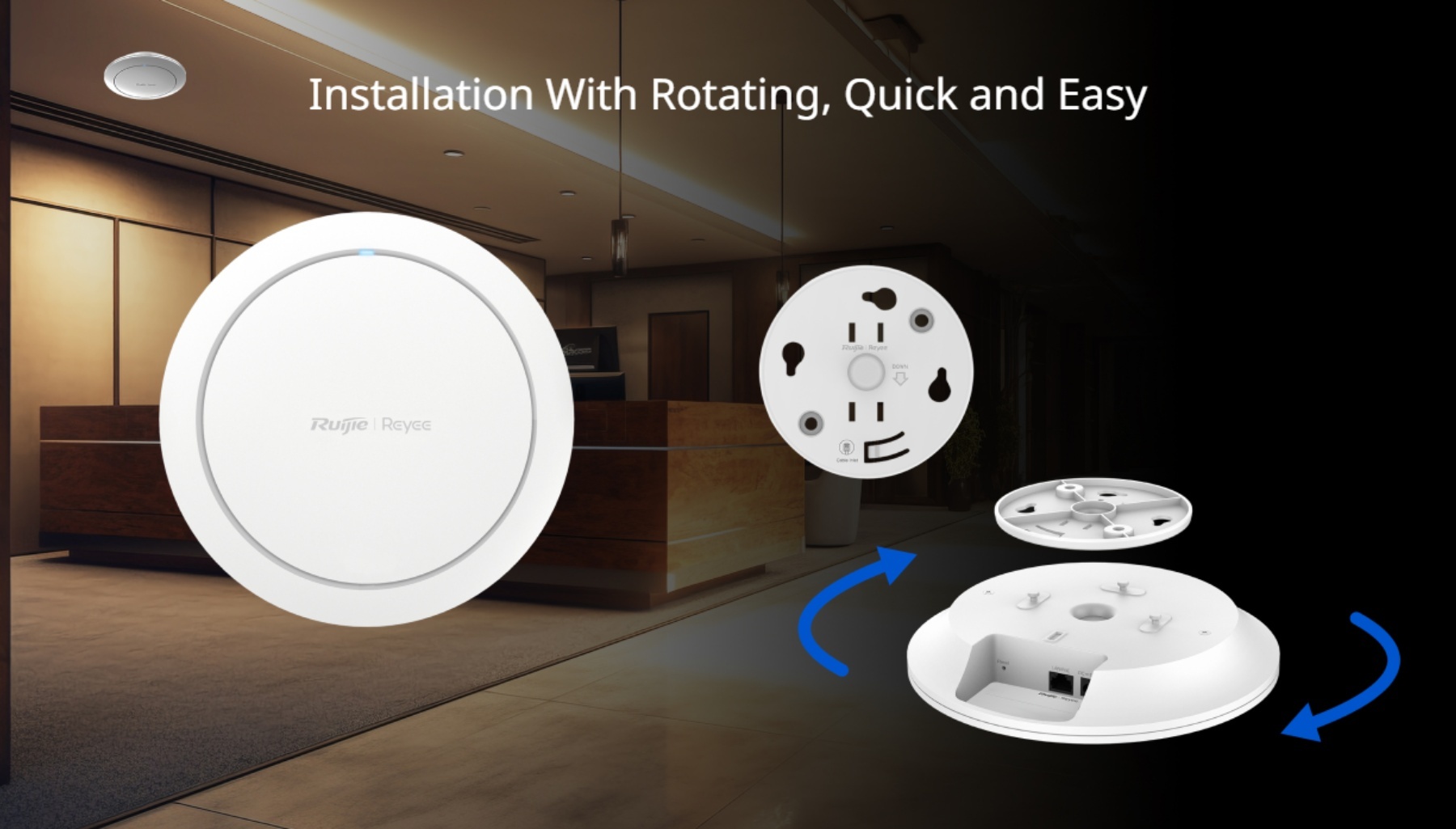

| Installation |
Ceiling-Mountable |
| Mounting Bracket Dimensions (W × D × H) |
113.5 mm x 113.5 mm x 13.5 mm |
| Mounting Hole Pattern |
80 mm |
| Mounting Hole Diameter |
6.5 mm |
| Power Supplies |
IEEE 802.3at PoE, DC 12V/2A |
| Power Consumption |
≤ 18W |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
5% to 95% Noncondensing |
| Storage Humidity |
5% to 95% Noncondensing |
| IP (Ingress Protection) |
Not Applicable |
| Port Surge |
+/-2kV |
| MTBF |
> 400,000 hours |
