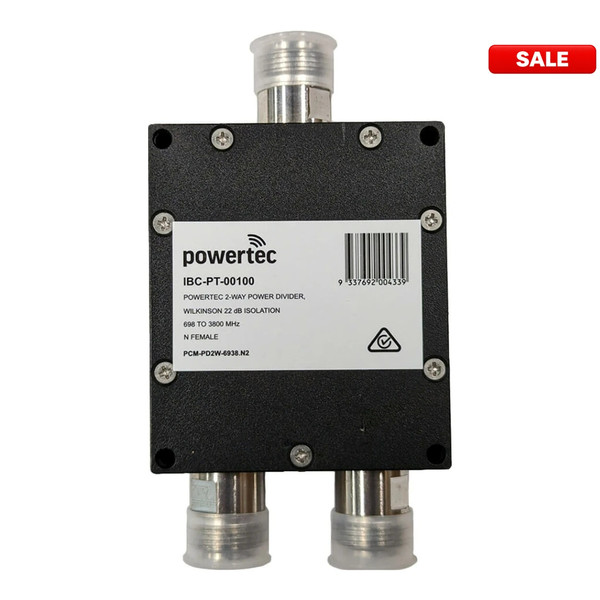

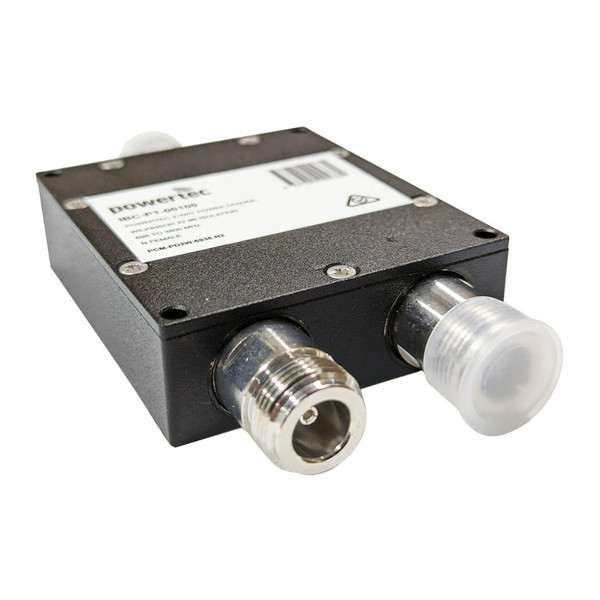

The Powertec RF Power Divider 2-Way, model PCM-WPD2-6938.N2, is specifically designed for effective signal distribution within cellular networks, in-building coverage (IBC), and distributed antenna systems (DAS). This versatile power divider operates over a wide frequency range of 698 to 3800 MHz, enabling seamless integration with a variety of RF devices and antennas.
Key Features:
- 698 to 3800 MHz Frequency Range
- N Female connectors
- > 22 dB Interport Isolation
- 3 dB Coupling Value
- Input loss of 0.9 dB and output loss of 3.00 dB.
- 50 Ω Input Impedance
- Over 50W max. Input Power
- ≤110 dBc PIM Rating
- Durable aluminium with a powder-coated finish
- IP45 rating
Exceptional Isolation for Quality Signal Integrity
Featuring over 22 dB of inter-port isolation, this RF power divider ensures minimal interference and optimal signal integrity between coupled and output ports. This high level of isolation is crucial for maintaining the performance of complex RF systems, particularly in environments where multiple signals are in operation.
Durable Construction for Varied Environments
Built with a robust aluminium body and finished with a powder coat, the Powertec RF Power Divider is designed to endure challenging environmental conditions. Its IP45 rating ensures reliable operation, whether installed indoors or outdoors, making it suitable for diverse applications.
Compact Design for Easy Integration
With compact dimensions of 103 x 60 x 20 mm and a lightweight build of 360 g, this power divider offers flexibility in installation without compromising space. Its thoughtful design allows for easy mounting using screws or bolts, streamlining the integration process in existing setups.
Low Insertion Loss for Enhanced Performance
The Powertec RF Power Divider features a low insertion loss of only 0.9 dB, ensuring that signal quality is preserved throughout the distribution process. This characteristic is particularly important for high-performance RF networks, where signal degradation can impact overall system effectiveness.
High Power Handling Capability
Capable of handling maximum input power levels exceeding 50 W, the PCM-WPD2-6938.N2 is engineered to meet the demands of modern RF applications. Its robust design accommodates significant power without sacrificing performance, making it a reliable choice for demanding environments.
Optimised for 4G and 5G Applications
This power divider is ideal for use in advanced communication systems, including 4G and 5G networks. Its specifications are tailored to support the growing demand for high-speed connectivity, ensuring that it meets the evolving needs of modern telecommunications infrastructure.
