The Powertec Universal Ceiling-Wall Mount antenna allows flexible mounting on walls, ceilings or standalone on a tabletop. The modern design makes it perfect for businesses, houses, apartments and many other in-building applications.
FEATURES:
- 5G Ready: Covers 698–4000MHz (5G, 4G LTE, and 3G frequencies)
- Flexible vertical or horizontal mounting and positioning
- Light, compact and modern design (17.5 x 17.5 x 6.8cm / 0.5kg)
- N-female pigtail cable attachment
- 5.5 to 8dBi gain
PACKAGE CONTENTS
- Powertec Universal Ceiling-Wall Antenna 698-4000MHz
- Threaded Fixing Nut
- Threaded Post
- Wall Mounting Plate
- Screws & Anchors
MOUNTING - Above Ceiling Mount (Roof Cavity)
- Drill a 2.5cm (1 inch) hole in the ceiling. The hole should be large enough to allow the antenna's Threaded Post to pass through.
- Side the notched bottom of the Threaded Post into the mounting bracket attached to the antenna; running the antenna cable through the post grove.
- Push the antenna through the ceiling surface with the antenna cable passing through the ceiling.
- Use the threaded fixing nut to secure the antenna by tightening around the Threaded Post.
- Connect N female antenna connector to N male low-loss cabling.

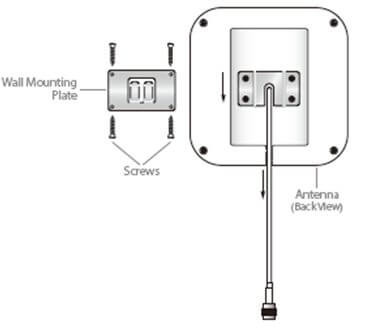

MOUNTING - Wall/ Below Ceiling Mount (Solid Ceiling without a cable hole)
- Attach the Wall Mounting Plate to the wall with the provided Screws & Anchors.
- Align the antenna mount above the Wall Mounting Plate and slide the antenna on the Wall Mounting Plate.
- Make sure to bend the antenna cable down through the notch of the mounting bracket and into the grove at the base of the antenna. This will allow the antenna to rest flush on the wall.
- Connect N female antenna connector to N male low-loss cabling.
