Powertec

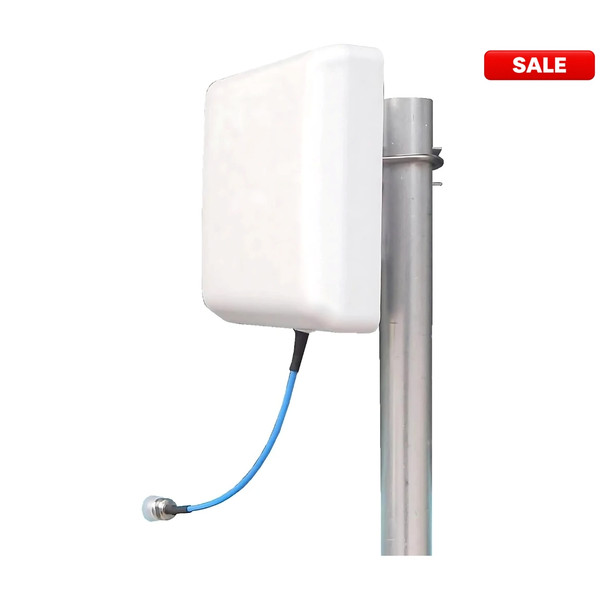

The Powertec 4G-5G Outdoor Wall Mount Antenna, 698 to 4000 MHz, N Female is designed to provide mobile coverage outdoors. The antenna supports all major 4G and 5G mobile networks globally and has a low-PIM design to broadcast multiple carriers from one antenna.

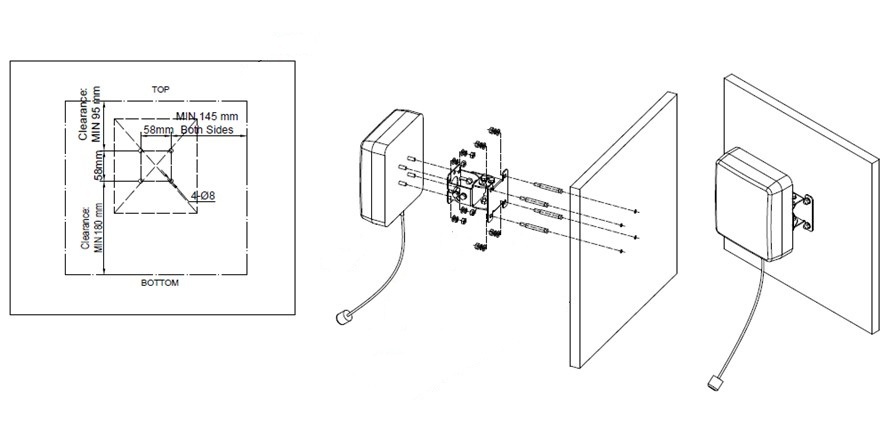

Mounting Option – Wall Mount

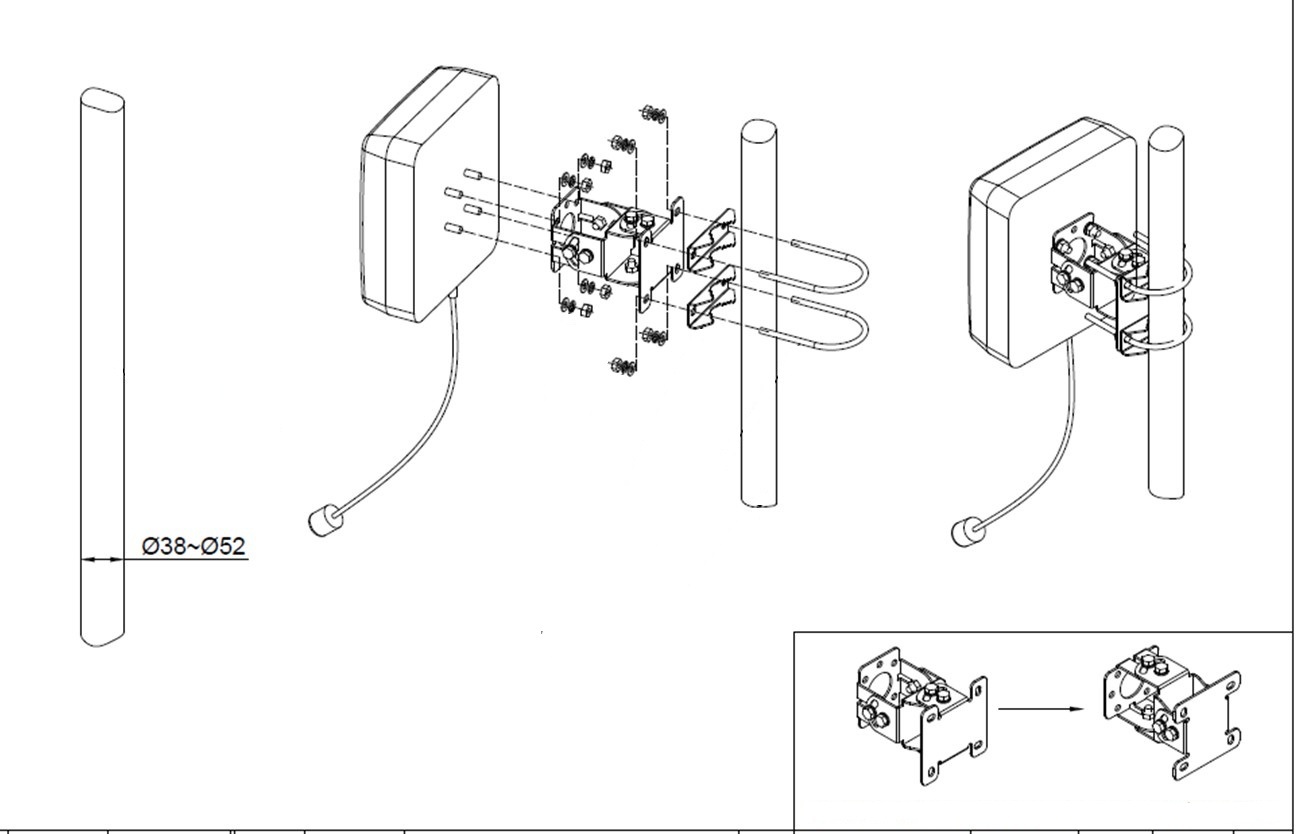

Mounting Option – Pole Mount
Electrical Specifications | ||||
Frequency Range, MHz | 698-806 | 806-960 | 1710-2700 | 3300-4000 |
Gain, dBi | 5.5 | 6.5 | 8 | 7 |
VSWR | ≤2.0 | ≤2.0 | ≤1.8 | ≤1.8 |
Polarization | Vertical | |||
PIM, 3rd Order, 2x20W, dBc | ≤-150 | |||
Front-to-Back Ratio, dB | ≥9 | ≥10 | ≥15 | ≥11 |
Horizontal Beamwidth | 100° | 85° | 65° | 50° |
Vertical Beamwidth | 90° | 82° | 60° | 45° |
Input Impedance, Ω | 50 | |||
Max. Input Power, W | 50 | |||
Lightning Protection | DC Ground | |||
Mechanical Specifications | ||||
Connector | N Female | |||
Dimensions, mm | 180x158x60 | |||
Weight, kg | 0.5 | |||
Reflector Material | Aluminum | |||
Radome Material | ABS (UV Stabilized) | |||
Ingress Protection | IP65 | |||
Operating Temperature, °C | -40 to +65 | |||
Mounting Pole, mm | Ø38-Ø52 |
General Information | |
---|---|
Manufacturer: | Powertec |
Manufacturer Part Number: | VPA-6940-7.N2 |
Barcode: | 9337692004292 |
Packaging Details | |
Weight: | 0.40 KGS |
Width: | 18.00 (cm) |
Height: | 7.00 (cm) |
Depth: | 21.00 (cm) |
