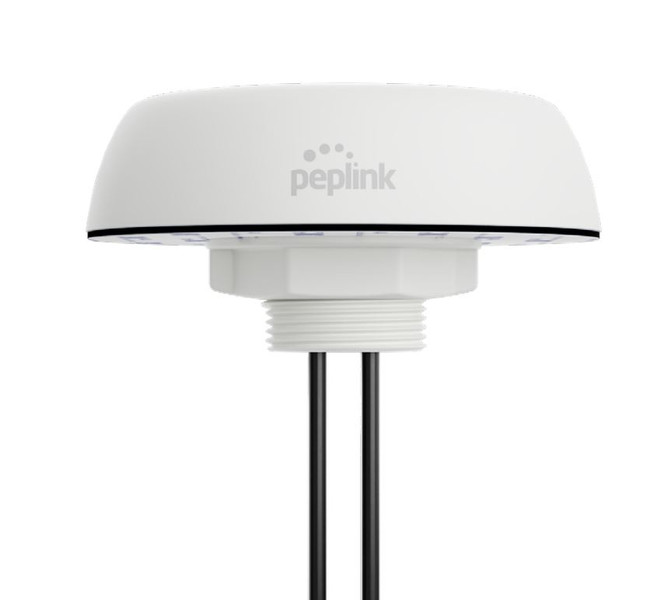

Peplink Mobility 02 (Puma 020-R-B-6), 2xWiFi, 2400-6000MHz, IP68, RP-SMA, White, 6.5 ft / 2.0m
Peplink Mobility 02 (Puma 020-R-B-6), 2xWiFi, 2400-6000MHz, IP68, RP-SMA, White, 6.5 ft / 2.0m
Reliable Dual-Band Wi-Fi Antenna for Mobile Applications
Designed for seamless connectivity, this compact and durable antenna supports 2.4GHz and 5GHz frequencies with 2x2 MIMO technology for enhanced bandwidth and reliability. Its UV-stable plastic housing ensures long-lasting performance in various environments. Available in black and white, it offers flexible installation options with multiple cable lengths and RP-SMA male connectors.
Key Features
- Dual-Band Performance – Operates on both 2.4GHz and 5GHz frequencies, providing versatile and stable wireless connectivity.
- 2x2 MIMO Technology – Enhances data throughput and ensures a more robust and reliable connection.
Weather-Resistant Design – Built with UV-stable plastic housing for durability in challenging conditions. - Flexible Aesthetic Choices – Available in black and white to match different deployment needs.
- Easy Installation – Comes with various cable length options and RP-SMA male connectors for a straightforward setup.
Ensure reliable and high-speed Wi-Fi connectivity in mobile environments with a durable and cost-effective solution.
| Technical Specifications | |
|---|---|
| Wi-Fi | |
| Antenna elements | 2 elements |
| Cellular frequency bands | 6.2dBi: 2400-2500 MHz 7.3dBi: 4900-6000 MHz |
| VSWR | < 2.0 |
| Feed power handling | 10W |
| Input impedance | 50 Ω |
| Polarisation | Linear |
| Cable | |
| Type | CFD-200 |
| Length | 6 ft 7 in. / 2m |
| Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| Diameter | 0.2 in. / 5.0mm |
| Jacket | Half matt PVC, UV resistant |
| Termination | RA-SMA male |
| Mounting | |
| Supported types | Panel, wall, pole |
| Mounting hole | 1 11/16" / 43mm |
| Max panel thickness | 19/32" / 15mm |
| General Information | |
|---|---|
| Manufacturer: | Peplink |
| Manufacturer Part Number: | PUMA-020-R-B-6 |
| Barcode: | 90008948 |
| Packaging Details | |
| Weight: | 1.00 KGS |
| Width: | 22.00 (cm) |
| Height: | 11.00 (cm) |
| Depth: | 23.00 (cm) |
