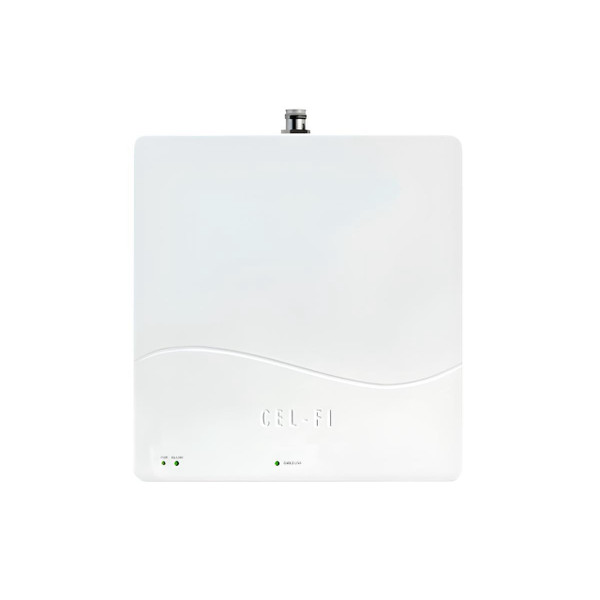

Nextivity CEL-FI QUATRA 4000e Australia FGSG Coverage Unit Bands 1/3/5/7/8/26/28/40

Advanced indoor cellular coverage amplification module for enterprise buildings

This product is a coverage unit that disburses the mobile signal for the Q4000e network unit. It is connected to the Network Unit via an ethernet cable. This coverage unit requires a Q4000e Network Unit to function. Enhances and redistributes donor signal throughout indoor spaces as part of a digital active DAS hybrid system. Boosts indoor cellular coverage and network performance within medium-large sized buildings. Designed for enterprise-grade environments, it delivers high-gain multi-band cellular improvement, utilises category cabling for RF and PoE distribution, and supports scalable deployment when paired with a compatible network unit. This unit operates only as part of the QUATRA architecture and requires carrier design and installation approval.

Key Features

• High-performance multi-band operation: Supports Bands 1, 3, 5, 7, 8, 26, 28 and 40, boosting indoor, 4G and 5G services across multiple network technologies.
• Industry-leading system gain: Digital relay architecture delivers up to 100 dB system gain, significantly strengthening building coverage while maintaining clean signal quality.
• PoE-powered RF distribution: Uses category cabling for both RF transport and Power-over-Ethernet delivery, enabling efficient installation without coaxial infrastructure.
• Flexible site configuration: Supports operator-specific donor antenna feeds or small-cell signal sources for adaptable integration in complex building layouts.
• Cloud-based remote management: Fully monitored, configured, and updated via the Nextivity WAVE Portal for centralised performance control.
• Carrier-approved operation: Telstra, Optus and Vodafone Approved – supports all three network operators simultaneously.
• Multi-operator capability: Supports up to four independent operators with relay channel bandwidths of 5, 10, 15, or 20 MHz and a maximum of eight relay bands.
• Enterprise-grade signal integrity: Includes echo-cancellation performance of at least 30 dB and a maximum 7 dB noise figure for optimal signal delivery.
• Mandatory network-unit pairing: Requires connection to a compatible Network Unit for power and signal distribution, and cannot operate standalone.

Designed for high-density buildings, this module delivers reliable multicarrier connectivity, broad frequency compatibility and powerful digital amplification to enhance internal mobile voice and data performance.

IMPORTANT: This is a restricted product and as a result an approval process for each installation including mobile operator approvals and designs must be obtained. Our design and projects team are here to assist to guide you through this process.
