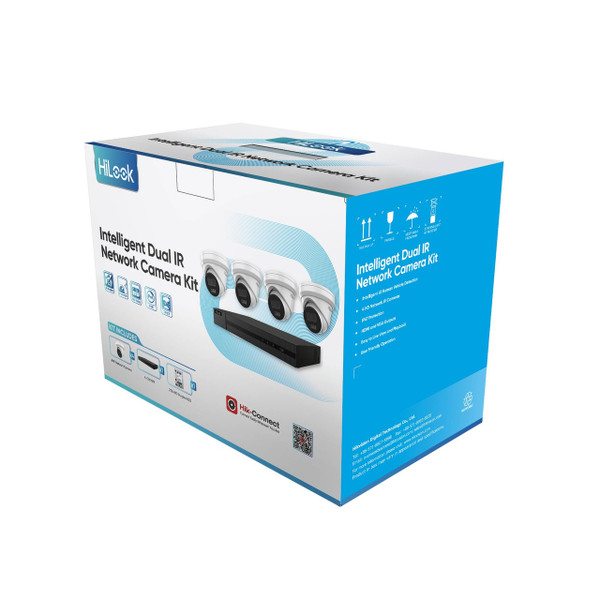

HikVision HiLook Kit IK-4246TH-MM-P, 4 x 6MP Turret + 1 x 4CH NVR + 1 x 2TB HDD

0 review Write a Review
Complete PoE surveillance kit with 6MP cameras, NVR, and storage. Delivers reliable security, night vision, remote access, and simple installation for homes or businesses.
SKU: SEC-HL-00024
MPN: NVR-104MH-C-4P(D)-2TB + IPC-T361H-MU-2

HikVision HiLook Kit IK-4246TH-MM-P, 4 x 6MP Turret + 1 x 4CH NVR + 1 x 2TB HDD

Complete PoE surveillance kit with high resolution cameras and storage

This all-in-one surveillance solution is designed for small to medium monitoring applications, combining a 4-channel PoE network video recorder with four high-resolution turret cameras and pre-installed storage for immediate deployment. It delivers clear 6MP video capture with efficient compression, reliable night performance, and simplified installation using Power over Ethernet, eliminating complex wiring. The system supports advanced video management through dedicated software, enabling remote access, playback, and configuration, making it suitable for residential, retail, and light commercial security environments.

Key Features

  • Complete Surveillance Kit: Includes a 4-channel PoE NVR, four high-resolution turret cameras, and a pre-installed hard drive, providing a ready-to-deploy monitoring solution without additional components required.
  • High-Resolution Video Capture: Cameras deliver up to 6MP resolution, ensuring detailed image clarity for identification, monitoring, and evidence recording across various environments.
  • Efficient Video Compression: Advanced H.265+ compression reduces bandwidth and storage usage while maintaining high image quality, allowing longer recording times on the included storage.
  • Power over Ethernet (PoE) Simplicity: Single-cable installation provides both power and data transmission to each camera, reducing installation time and eliminating the need for separate power supplies.
  • 4-Channel NVR with 8MP Decoding: The recorder supports high-resolution decoding and playback, enabling smooth viewing and recording of multiple camera streams simultaneously.
  • Pre-Installed Storage Capacity: Comes with a built-in hard drive, allowing immediate recording capability and eliminating the need for additional storage setup.
  • Advanced Night Vision Performance: Integrated infrared illumination delivers clear video in low-light and complete darkness, with effective coverage up to 30 metres.
  • Wide Dynamic Range Imaging: 120 dB WDR ensures balanced exposure in challenging lighting conditions, improving visibility in scenes with strong contrast.
  • Smart Detection Features: Supports motion detection, intrusion detection, and line crossing alerts with human and vehicle classification for more accurate event triggering.
  • Remote Monitoring and Management: Compatible with dedicated software and mobile applications, enabling live view, playback, and system management from anywhere.
  • Robust Weather Protection: IP67-rated camera construction ensures reliable outdoor operation in harsh environmental conditions.
  • Flexible Video Output Options: Supports HDMI and VGA simultaneous output with up to 4K display resolution for versatile monitoring setups.

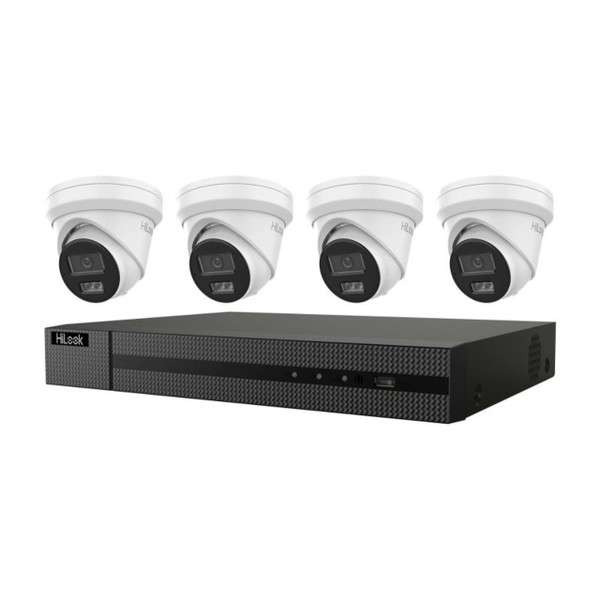

Kit Includes

  • 1x 4CH NVR
  • 4x 6MP Turret Network Camera
  • 2TB Pre-installed HDD

This system delivers dependable, high-quality surveillance with simple installation and powerful monitoring features, making it an efficient choice for modern security needs.

General
System Type Network PoE Surveillance Kit
Channels 4 Channel NVR
Included Cameras 4 Turret Cameras
Storage Pre-installed HDD
Camera
Image Sensor Progressive Scan CMOS
Maximum Resolution 3200 × 1800
Lens Options 2.8 mm or 4 mm Fixed
Night Vision Range Up to 30 m
Wide Dynamic Range 120 dB
Audio Built-in Microphone
Weather Rating IP67
Video & Compression
Compression Formats H.265+, H.265, H.264+, H.264
Main Stream Frame Rate Up to 20 fps
Bit Rate 32 Kbps to 16 Mbps
NVR
Video Input 4 Channel IP
Maximum Resolution Up to 8 MP
Video Output HDMI and VGA Simultaneous
Decoding Capability 1 Channel at 8 MP or Multi-Channel 1080p
PoE Ports 4 Ports IEEE 802.3af/at
Network & Interface
Network Interface RJ45 Ethernet
Protocols TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, SMTP
Remote Access Up to 16 Connections
Power
Camera Power PoE or 12 VDC
NVR Power Supply 48 VDC
General Information
Manufacturer: HikVision HiLook
Manufacturer Part Number: NVR-104MH-C-4P(D)-2TB + IPC-T361H-MU-2
Packaging Details
Weight: 5.00 KGS
Width: 30.00 (cm)
Height: 10.00 (cm)
Depth: 30.00 (cm)
