EZVIZ CS-EB5 (4K), 8MP Camera, 2.8mm Lens, F1.6, 135° Diagonal, IR 15m, WiFi 6, IP65, 3840x2160 Resolution
EZVIZ CS-EB5 (4K), 8MP Camera, 2.8mm Lens, F1.6, 135° Diagonal, IR 15m, WiFi 6, IP65, 3840x2160 Resolution
The EZVIZ CS-EB5 camera features a stunning 4K resolution at 3840×2160, delivering ultra-clear video that ensures every detail is captured, even in expansive outdoor areas. The camera's 135° diagonal viewing angle ensures comprehensive coverage, allowing you to monitor a wide range of environments effortlessly.
Key Features:
- 4K Ultra HD resolution (3840x2160)
- 8MP progressive scan CMOS sensor
- 2.8 mm lens with F1.6 aperture for wide-angle view (135° diagonal)
- Built-in 1.4W solar panel
- Supports colour night vision with a 15m range
- AI-powered human and vehicle shape detection
- H.265 video compression
- 10,400mAh battery, providing up to 180 days of operation without solar charging
- Wi-Fi 6 support
- IP65 weatherproof rating
- Two-way audio
- Active defence with siren and spotlight
Solar-Powered for Continuous Operation
With a built-in 1.4W solar panel, the EB5 is designed to be energy-efficient, drawing power directly from sunlight to operate continuously. Even during rainy seasons, the camera’s large 10,400mAh battery ensures up to 180 days of uninterrupted operation without additional charging, offering a sustainable security solution.
AI-Powered Human and Vehicle Detection
The EB5 utilises AI to distinguish between humans and vehicles from other motion, reducing false alarms and ensuring that you are only notified about important events. This powerful detection technology helps maintain constant vigilance without the need for a subscription service.
Smart Integration with Voice Assistants
The EB5 is compatible with Google Assistant and Amazon Alexa, making it easy to control your camera using voice commands. Simply ask Alexa or Google to show you the live feed from your camera, allowing hands-free monitoring and greater convenience.
Advanced Night Vision for 24/7 Surveillance
Equipped with colour night vision, the EB5 ensures vibrant and clear footage even in low-light conditions. The camera's F1.6 aperture and IR illuminators provide excellent clarity up to 15 metres, while its automatic switch between day and night modes guarantees optimal performance throughout the day and night.
Easy Installation and Wire-Free Convenience

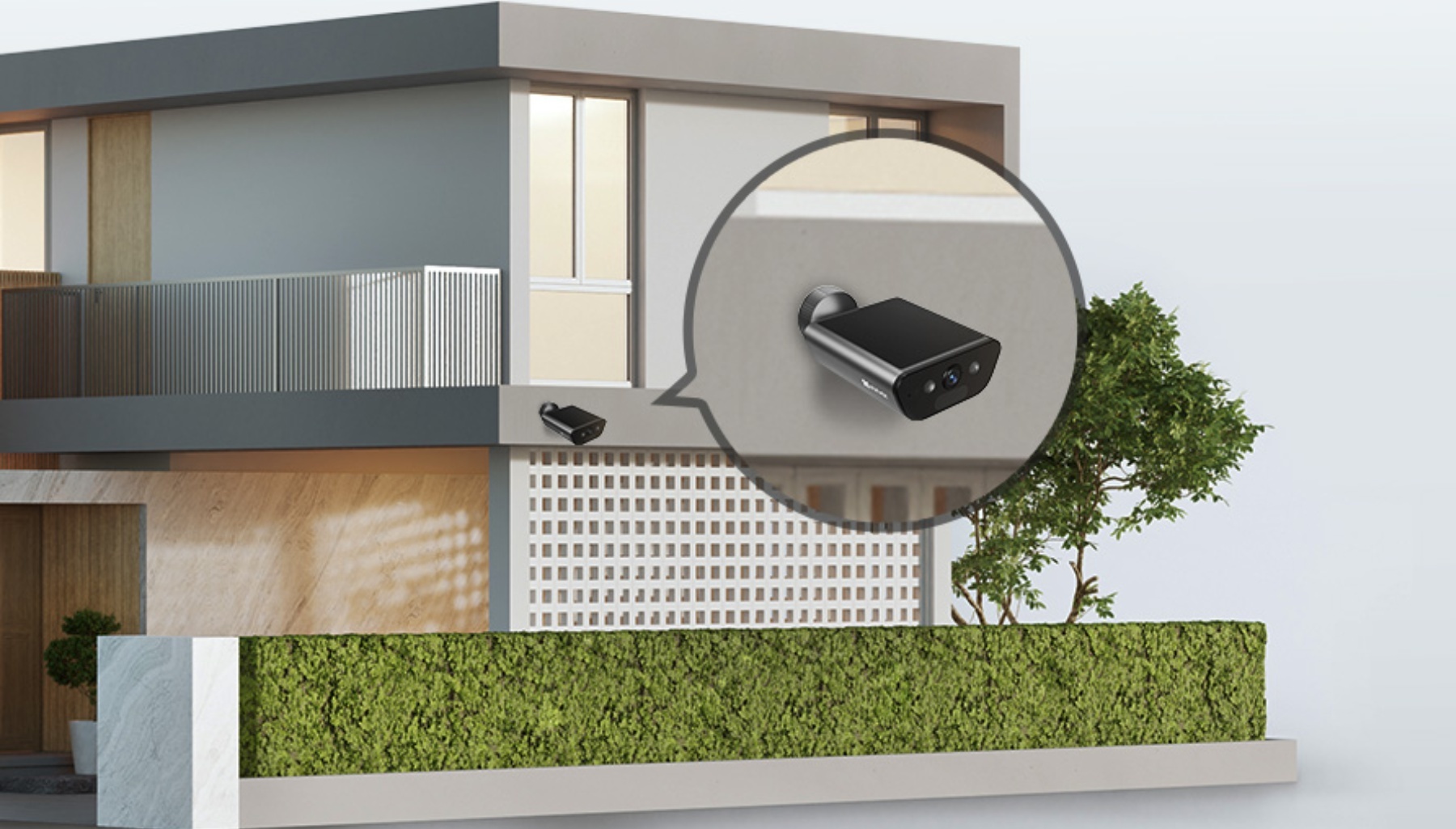

With a hassle-free installation process, the EB5 doesn’t require any hubs or complex wiring. Its compact design and integrated solar panel make it easy to install in any location with direct sunlight, providing you with complete flexibility and minimal setup time.
Enhanced Connectivity with Wi-Fi 6
Supporting Wi-Fi 6 technology, the EB5 offers improved network performance and a stable connection even in large homes or areas with thick walls. This next-gen connectivity ensures smooth 4K streaming and reliable video capture, giving you peace of mind wherever you are.
Category | Specification | Details |
---|---|---|
Model Version | CS-EB5-R100-2F8WFL | 8MP Solar Camera |
Resolution | Max Resolution | 3840 × 2160 (4K) |
Frame Rate | Max Frame Rate | 15 fps, self-adaptive during network transmission |
Video Compression | Supported Compression | H.265/H.264 |
Video Bit Rate | Max Bit Rate | 4 Mbps |
Audio Bit Rate | Rate | Self-adaptive |
Storage | Local Storage | Supports MicroSD (Up to 512GB) |
Cloud Storage | EZVIZ CloudPlay | |
Functions | Smart Alarm | AI-powered human shape detection AI-powered vehicle detection |
Audio | Two-way Talk | Supports two-way communication |
General Features | Other Features | Anti-Flicker Heartbeat Password Protection Watermark |
Network | Bluetooth | Supports Bluetooth |
Wi-Fi Standard | Wi-Fi Protocol | IEEE802.11b 802.11g 802.11n 802.11ax |
Frequency Range | Wi-Fi Frequency | 2.4 GHz ~ 2.4835 GHz |
Wi-Fi Channel | Channel Bandwidth | Supports 20 MHz |
Wi-Fi Security | Network Security | WPA-PSK/WPA2-PSK WPA3-Personal |
Transmission Rate | Wi-Fi Speed | 11b: 11 Mbps 11g: 54 Mbps 11n: 72 Mbps 11ax: 114 Mbps |
Wi-Fi Pairing | Wi-Fi Pairing Method | AP pairing |
Protocol | Cloud Protocol | EZVIZ Cloud Proprietary Protocol |
Network Requirement | Min. Network Speed | 8 Mbps |
Camera | Image Sensor | 1/2.7" 8-Megapixel Progressive Scan CMOS |
Illumination | Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
Shutter Speed | Speed | Self-adaptive shutter |
Lens | Lens Type | 2.8mm @ F1.6 Diagonal angle: 135° |
Lens Angles | Horizontal: 113° Vertical: 60° |
|
Night Vision | Type | IR Distance: 15m Color Night Vision Distance: 15m |
Day/Night | Day & Night Mode | IR-cut filter with auto switch |
DNR | Noise Reduction | 3D DNR |
Operating Conditions | Temperature | -20°C to 50°C |
Humidity | 95% or less (non-condensing) | |
IP Rating | Weatherproof Rating | IP65 |
Power Supply | Power Input | DC 5V/2A (adapter needs to be purchased separately) |
Battery | Battery Capacity | 10,400 mAh |
Dimensions | Product Dimensions | 166 × 103 × 54 mm |
Packaging Dimensions | 227 × 167 × 64 mm | |
Weight | Net Weight | 466g |
Gross Weight (with Package) | 822g | |
Power Consumption | Max Power Consumption | Max. 10W |
In the Box | Included Accessories | Camera Power Cable Drill Template Screw Base EZVIZ Screw Kit Quick Start Guide |
Certifications | Types | CE REACH WEEE RoHS |
General Information | |
---|---|
Manufacturer: | EZVIZ |
Manufacturer Part Number: | EB5 4K |
Barcode: | 6941545632940 |
Packaging Details | |
Weight: | 0.25 KGS |
Width: | 17.00 (cm) |
Height: | 7.00 (cm) |
Depth: | 23.00 (cm) |
