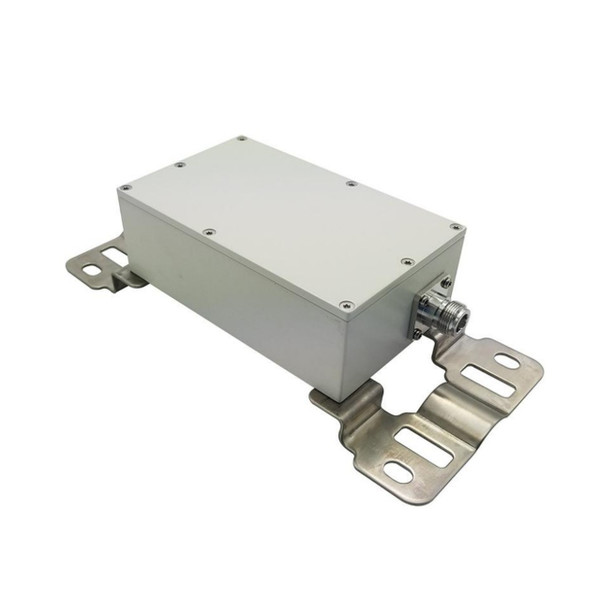

Bandpass Filter. Out of Band Rejection: ≥40dB @859MHz & 900MHz

Compact bandpass filter delivering reliable high-performance signal control

This bandpass filter is engineered for 869–890 MHz applications, ensuring strong out-of-band rejection with minimal insertion loss. Its rugged IP65-rated design and N-Female connectors make it suitable for both indoor and outdoor installations, delivering consistent performance in demanding environments.

Key Features

• Optimised frequency range: Operates from 869 to 890 MHz, ensuring precise signal filtering for critical communication systems.
• Low insertion loss: Provides ≤ 1.5 dB insertion loss, maintaining high transmission efficiency.
• High port rejection: Achieves ≥ 40 dB out-of-band rejection at 859 MHz and 900 MHz for superior interference suppression.
• Robust power handling: Supports 200 W average and 1000 W peak power for high-capacity RF applications.
• Durable weatherproof design: IP65-rated enclosure ensures reliable performance in harsh outdoor conditions.
• Reliable N-Female interface: Equipped with N-Female connectors for secure and low-loss RF connections.
• Compact and lightweight: Designed for easy installation with a mounting bracket and hose clamp included.

With excellent filtering, strong durability, and high reliability, this filter is ideal for telecom and wireless infrastructure applications.
