Solar Kit for Wireless Bridge / Access Point & Camera

Off-grid Solar Kit to Power Remote Bridges, Cameras, and APs

This integrated solar power kit is purpose-built to support wireless bridge radios, access points, and surveillance cameras in remote or off-grid locations. Designed for rugged outdoor deployment, it combines high-efficiency solar charging, lithium battery storage, intelligent power regulation, and a weatherproof enclosure with pole mounting for elevated installations. Ideal for telecom, security, or rural connectivity projects.

Key Features

• Weatherproof Polycarbonate Enclosure: Fibox IP66-rated cabinet (800 H x 600 W x 300 D mm) with hinged door, quarter-turn locks, and mounting plate protects all internal electronics.
• Pole Mount Kit Included: Stainless steel bracket kit secures the enclosure to round poles (100–300 mm OD) for flexible field installation.
• High-Efficiency Solar Panel: 360 W 24 V monocrystalline panel delivers reliable solar energy with a durable aluminium frame (1956 × 992 × 40 mm).
• Deep-Cycle Lithium Battery: Renogy 12 V 200 Ah LiFePO₄ core series battery provides long-lasting, maintenance-free energy storage with built-in BMS.
• Smart MPPT Solar Charging: Victron SmartSolar MPPT 100/20 supports 12/24/48 V systems with Bluetooth for remote configuration and performance monitoring.
• DIN-Mounted DC-DC Converter: Mean Well DDR-120A-48 provides 48 V output from 12 V input, isolating and regulating power for cameras or bridge radios.

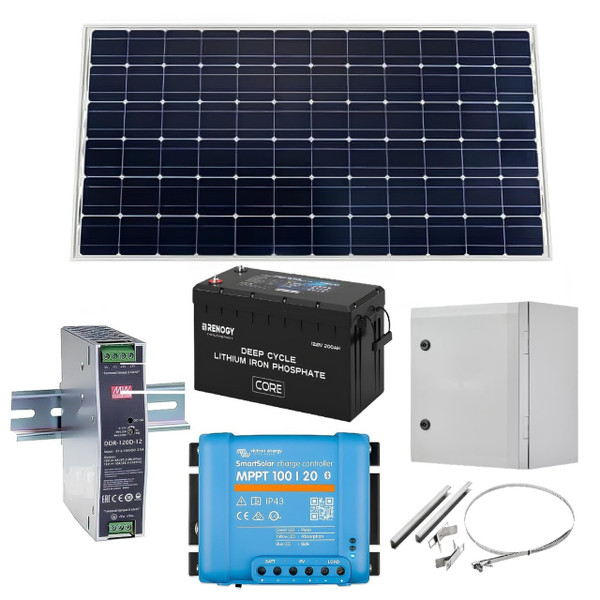

Kit Contents

• Victron Solar Panel 360W-24V Mono 1956 x 992 x 40mm series 4a
• Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
• Victron SmartSolar MPPT 100/20 12/24/48V Bluetooth Solar Controller
• Mean Well DDR-120A-48 Isolated DC/DC Converters 9-18Vin 48Vout 2.1A 100.8W DIN Iso DC-DC
• Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66
• Fibox ARCA Pole Mounting Kit to Suit 600W Enclosures for 100-300mm OD Poles

This kit provides a reliable and modular power system for critical outdoor networking and surveillance infrastructure, with no need for mains power.
