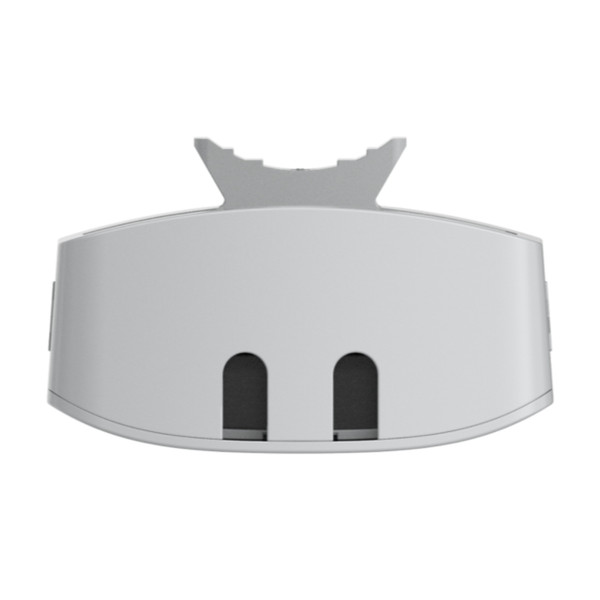

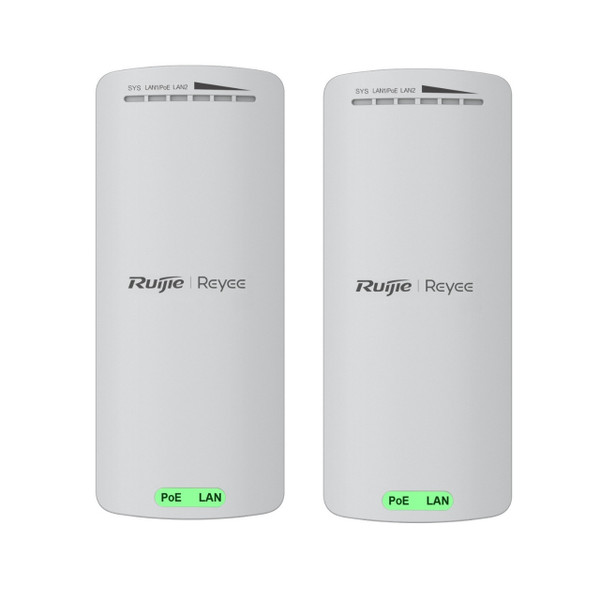

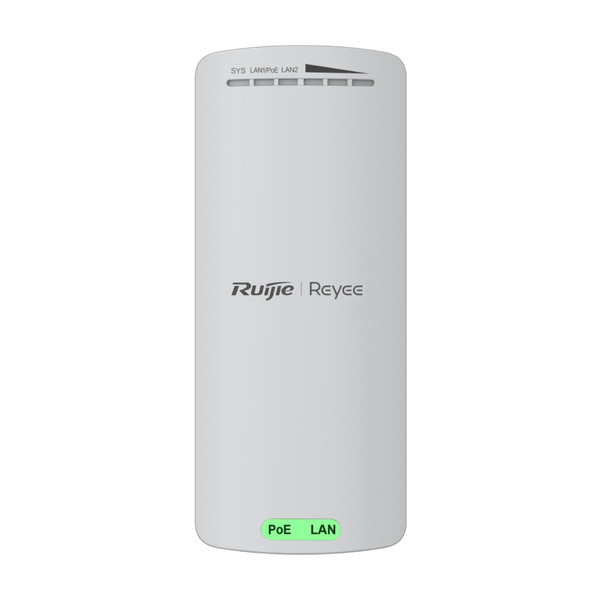

Ruijie Reyee RG-EST100-E, 2.4GHz Dual-Stream 500m Wireless Bridge (Pre-Paired Pack)
Ruijie Reyee RG-EST100-E, 2.4GHz Dual-Stream 500m Wireless Bridge (Pre-Paired Pack)
The Ruijie Reyee RG-EST100-E 2.4GHz Dual-Stream 500m Wireless Bridge is set to revolutionize the way you transmit data wirelessly. With an impressive range of 500 meters, this innovative device offers real-time data transmission without the need for complicated configurations. Say goodbye to the hassle of factory setup as the RG-EST100-E doesn't require complex alignment, making installation a breeze.
Key Features:
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Designed to withstand various outdoor conditions, this wireless bridge is IP55 weatherproof and can operate in temperatures ranging from -30℃ to 60℃. Whether you need to set up a network outdoors or in an elevator environment, rest assured that the RG-EST100-E will deliver stable performance.
Capable of supporting up to 10 * 3MP cameras at 100 meters or 5 * 3MP cameras at the maximum range of 500 meters, this device is perfect for surveillance applications where reliable and high-quality data transmission is essential. The RG-EST100-E also offers visually intuitive statistics monitoring on the Ruijie cloud, allowing for easy maintenance and troubleshooting from a remote location.
With its stellar features and reliable performance, the Ruijie Reyee RG-EST100-E 2.4GHz Dual-Stream 500m Wireless Bridge is the ideal solution for your wireless data transmission needs. Experience seamless connectivity and superior data transmission capabilities with this cutting-edge device from Ruijie.
RG-EST100-E Specifications | |
---|---|
Feature | Details |
Radio Design | 2 GHz Single-Band Dual-Stream |
Transmission Protocol | IEEE 802.11b/g/n |
Operating Band | 802.11b/g/n: 2.400~2.483GHz |
Antenna | Directional antennas, 8 dBi |
Polarization | Horizontal: 70°, Vertical: 70° |
Bridging Distance | 500m (recommended) |
Spatial Streams | 2x2, MU-MIMO |
Memory/Flash | 64 MB/8 MB |
Maximum Throughput | Up to 300 Mbps at 2.4 GHz |
Ports | 2 10/100Base-T Ethernet ports, port 1 with Passive PoE |
Max. Transmit Power | ≤100 mW(20 dBm) (adjustable) |
IP Rating | IP55 |
Lightning Protection | ±6 KV (Common Mode) |
Installation | Wall-mounted/ Pole-mounted |
Weight | 0.3 kg |
Dimensions (D x W x H) | 165.5mm×68.7mm×42mm |
Ethernet LAN Port | Working in Bridging Mode |
VLAN | 802.1Q VLAN |
IPv4 | Supported |
ARP | Supported |
Ping | Supported |
Traceroute | Supported |
UCAST Default Route | Supported |
DHCP Client | Supported |
Static IP Address | Supported |
WAN Address Collision Avoidance | Supported |
Default Access/Password | 10.44.77.254; 192.168.120.1; admin |
SN Management | Entering SN, Importing SN by Excel File |
Wizard Project Settings | Project Name, Password and Type |
MQLink | Supported |
Networking Management |
Adding Device to Network Based on LNID Set Up New Device (LNID=0) One-to-Many Removing the device from project when the device is reset to factory settings Restoring LNID to 0 and password to admin when the device is removed from project Network Migration Device Deletion Discovering neighboring devices automatically and reporting the device whose LNID is 0 or inconsistent with the network LNID Migrating the device automatically after users enter the password |
Basic Settings |
AP/CPE Switchover LAN Settings Hostname Settings Password Settings Country/Region Code Settings Time Zone Settings Clock Settings |
Network Settings |
Password Settings IP Address Settings SSID Settings |
Configuration Synchronization |
Synchronizing configuration when the device is added After users edit settings on Eweb, MACC will receive the timestamp reported by the device and trigger synchronization A device goes online after settings are changed. The device will be synchronized with configuration based on its timestamp Synchronizing configuration among Ruijie Cloud, Eweb and MACC |
Alarm |
Default Configuration Notification IP Conflict Networkwide Management SSID Notification WDS Link Exception Alarm Disconnection Alarm |
Diagnostics |
Network Tools Fault Collection |
System Tools |
System Time Upgrade Upgrade to Specified Version Upgrade All Devices Local Upgrade |
Maintenance |
System Time Reboot Reset to Factory Settings Web Session Timeout |
Deployment Tool | Supported |
Device List | Hostname, Type, Client Count, Channel, Online/Offline Status |
Device Details | Hostname, SN, MAC Address, Management IP Address, Type, Firmware Version |
Remote SSH | Supported |
Remote Web | Supported |
WDS |
WDS Settings One-click optimization Switching among multiple working modes (high-bandwidth/normal/anti-interference) WDS: SSID Hiding, Not Open AP/CPE Switchover SSID, Channel and Power Settings Bridging Status LED LED off: No bridging One LED blinking: < -78dBm One LED on: -78dBm < RSSI < -72dBm Two LEDs on: -72dBm < RSSI < -65dBm Three LEDs on: RSSI > -65dBm Root AP RSSI: The lowest RSSI shall prevail Link Quality: High, Medium and Low If the CPE end detects bridging failure and fails to connect again in 5 minutes, it will be rebooted automatically to set up bridging again Unlocked: Default SSID (Broadcast, Open), @ruijie-bXXXX Locked: Default SSID (Hidden, Open), @ruijie-bXXXX The locked device supports re-pairing on Eweb and can be locked again AP/CPE supports fetching AP SSID/BSSID list by scanning Display Recommended Camera Count Multi-VLAN Transparent Transmission |
Login Authentication | Password, None |
Password Security | Static Password with Encrypted Transmission and Storage |
Developer Mode | Supported |
DNS | DNS client |
SSH | Supported |
TFTP Client | Supported |
DHCP-Server | Supported |
WLAN Basic Features |
Local Forwarding Local Association |
WLAN RF Features |
802.11 Protocol Country Code Channel Expansion |
WLAN Encryption and Security |
Link Authentication Access Authentication Security (WPA-PSK/WPA2-PSK/WPA-WPA2-PSK) Key Agreement Protocol Bridging key for the entire network Bridging key for a pair of wireless bridges Bridging key for wireless bridges |
WLAN QoS | WLAN QoS/WMM WMM |
Storm Control |
Multicast/Broadcast Conversion to Unicast (Four-Address) Three-Address Broadcast/Multicast Packet Rate: 11 Mbps |
Multicast/Broadcast Packet Suppression |
Limiting the Rate of DHCP and ARP Broadcast Packets Limiting the Rate of SSDP and mDNS Multicast Packets Limiting the Rate of All Types of Broadcast Packets Limiting the Rate of All Types of Multicast Packets |
WDS Link Quality | Displaying WDS Link Quality |
Real Topology | Displaying Real Topology |
Self-Organizing Network | Establishing a Self-Organizing Network Between Bridges |
LED Indicator | Indicates the bridging quality: LED off: No bridging LED blinking: ≤-78dBm One LED on: -78dBm < RSSI ≤-72dBm Two LEDs on: -72dBm < RSSI ≤-65dBm Three LEDs on: >-65dBm |
Hardware Button | 1 reset button |
Power Supply | 12 VDC power supply or 12 VDC Passive PoE |
Power Consumption | < 5W |
Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Operating Humidity | 5% to 95% (noncondensing) |
Storage Humidity | 5% to 95% (noncondensing) |
MTBF | > 400,000 hours |
RSSI |
–58 dBm/100 meters –68 dBm/500 meters |
Camera Number |
3M: 14/100 meters, 5/500 meters 4-5M: 6/100 meters, 3/500 meters 6-7M: 3/100 meters, 1/500 meters |
Package Contents |
RG-EST100-E * 2 Cable tie * 2 Power adapter * 2 User Manual * 1 Package Weight: 852g Package Dimension (W x D x H): 220 mm * 202 mm * 87 mm |
General Information | |
---|---|
Manufacturer: | Ruijie Reyee |
Manufacturer Part Number: | RG-EST100-E |
Barcode: | 6971693275775 |
Packaging Details | |
Weight: | 0.30 KGS |
Width: | 7.00 (cm) |
Height: | 5.00 (cm) |
Depth: | 17.00 (cm) |
