The PTL-240 Coaxial Cable N Male to SMA Male, 20m, is a premium L-240 class coaxial cable designed to deliver exceptional performance for RF applications. With a 6.1 mm outer diameter and support for frequencies up to 6 GHz, this cable strikes an ideal balance between size, attenuation, and signal integrity.
Key Features:
- L-240 Low Loss Coaxial Cable
- Effective up to 6 GHz Frequency Range
- High Shielding Effectiveness
- UV-stable polyethylene (PE) jacket
- Flexible and Lightweight
- High Power Handling
Superior Shielding and Durability
Featuring double shielding with aluminium foil and tinned copper braid, the PTL-240 ensures outstanding RF shielding with effectiveness greater than 90 dB. The durable Polyethylene (PE) jacket not only provides UV resistance but also promises a service life exceeding 20 years, making it a reliable choice for long-term installations.
Versatile Application
The PTL-240 is well-suited for various applications, including UHF radio and cellular technologies such as 3G and 4G. Its flexibility and low attenuation characteristics make it an excellent choice for connecting antennas to equipment, especially in scenarios where high-frequency signal transmission is crucial.
Flexibility and Easy Installation
With a minimum bend radius of just 19.1 mm (static) and 63.5 mm (dynamic), this cable offers flexibility while maintaining signal quality. The 20m length is ideal for installations requiring extended cable runs, providing ease of use and versatility in a range of setups.
High Power Handling Capacity
The PTL-240 cable supports a peak power capacity of up to 5.6 kW, ensuring reliable performance even in high-power environments. Its high capacity is complemented by a tested voltage tolerance of 2500 V, enhancing its suitability for demanding RF applications.
Excellent Electrical Characteristics
Boasting a velocity of propagation of 83% and a capacitance of 79.8 pF/m, the PTL-240 maintains exquisite electrical performance. These characteristics contribute to its low loss and efficient signal transmission, making it a preferred choice for maintaining high signal integrity.
Compatibility and Connector Options

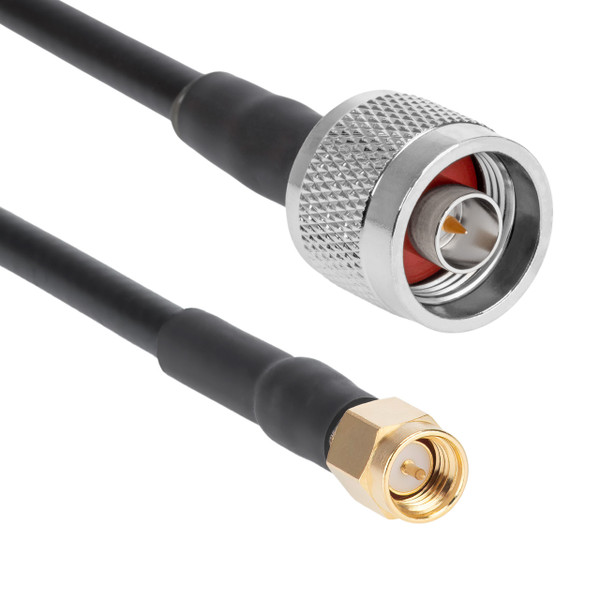

The PTL-240 Coaxial Cable comes with N Male to SMA Male connectors, offering broad compatibility with various RF devices. This makes it a versatile solution for connecting different equipment and antennas, ensuring a secure and reliable connection in any RF system.
