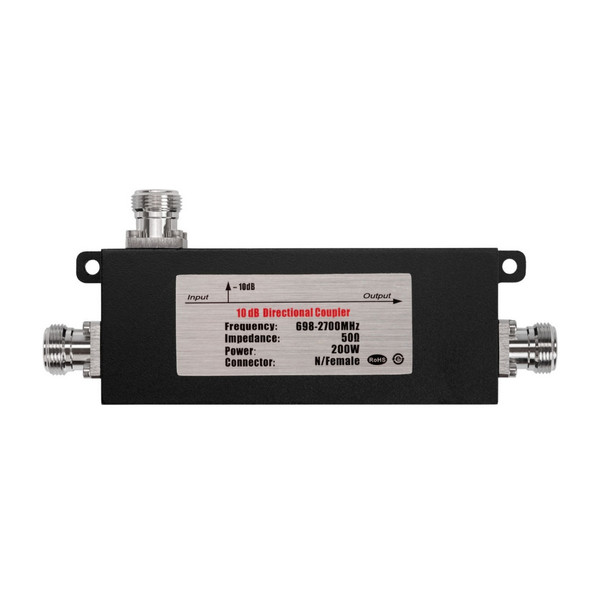

Reliable Coupler for Balanced Multi-Antenna Signal Distribution
This directional coupler is designed to optimise RF transmission across a wide 698–2700 MHz frequency range. It ensures precise signal management with a 10 dB coupling value, making it ideal for repeater applications and multi-antenna setups. With low mainline loss, high isolation, and IP65 protection, it delivers consistent performance indoors or outdoors, maintaining reliable coverage even in complex environments.
Key Features
- Wide frequency range: Operates from 698 to 2700 MHz for broad compatibility with RF systems.
- 10 dB coupling value: Provides accurate signal adjustment to balance multiple antenna outputs.
- Low mainline loss: Maintains minimal signal degradation with just 0.4 dB loss.
- Superior isolation: Offers 25 dB isolation to minimise interference between connected antennas.
- Low PIM rating: Ensures high-quality signal integrity with -155 dBc @ 2×43 dBm.
- High power handling: Supports up to 200 W (300 W max) with 35 W reflected power tolerance.
- Durable construction: Compact, rugged housing with IP65 ingress protection for indoor and outdoor use.
- Secure connectivity: Equipped with N-Female connectors for reliable, standardised integration.
Built for demanding RF environments, this coupler delivers stable, controlled signal distribution and long-term reliability across varied installations.
