Pylontech

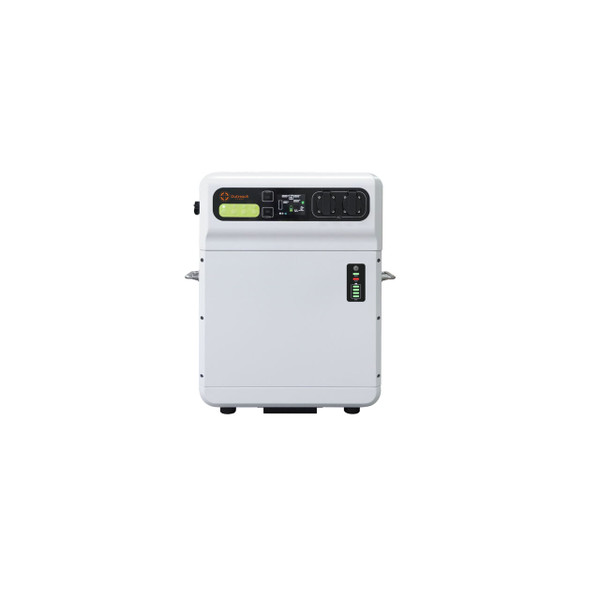

The Outreach Power all-in-one 4kW/10kWh portable ESS delivers double the storage capacity for extended runtimes and heavier power demands. Designed for residential, mobile, and commercial applications, it combines fast charging, dual MPPT solar inputs, and pure sine wave output with modular expandability. With durable protection, smart monitoring, and a portable design, it ensures reliable energy anywhere it’s needed.
This expanded-capacity ESS is ideal for households, businesses, and mobile setups requiring greater energy autonomy with the same portability and reliability.
Product Specifications | |
---|---|
Cell Type | LiFePO₄ |
Battery Capacity (Wh) | 10240 |
Nominal AC Output Power | 4000 W |
Surge Power | 8000 W |
AC Charging Power | 3600 W |
Recharge Time | Approx. 3 hours |
Solar Input (MC4) | 3000 W, 70–450 VDC, 16 A |
Solar Input (XT60) | 600 W, 12–50 VDC, 12 A |
AC Voltage | 220 / 230 / 240 V |
Frequency | 50–60 Hz |
Efficiency | Battery to AC 93%, PV to AC 97.5% |
Life Cycles | 4000+ |
Ingress Protection | IP54 |
Dimensions (mm) | 510 × 673 × 266 (per module) |
Weight (kg) | Approx. 110 (with dual modules) |
Noise | <40 dB |
Communication | Wi-Fi |
Portability | Telescopic handle and wheels |
General Information | |
---|---|
Manufacturer: | Pylontech |
Manufacturer Part Number: | OPLB-AIO0410-FP-AU |
Packaging Details | |
Weight: | 32.00 KGS |
