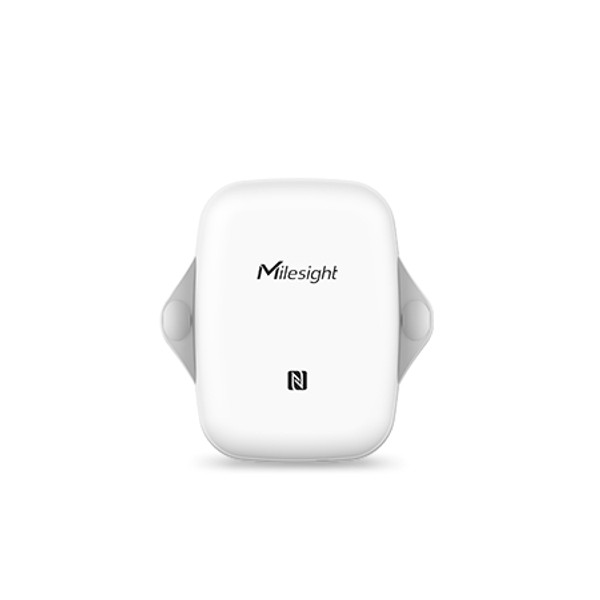

Milesight LoRaWAN EM320-TH Temperature and Humidity Sensor

0 review Write a Review
Milesight LoRaWAN EM320-TH Temperature and Humidity SensorFEATURES: Food-safe and IP67-rated enclosure Data storage and retransmission Magnetic/Standard versions for versatile applications Optimized for accuracy and resolution.
SKU: IOT-UR-00090
MPN: EM320-TH-915M
Shipping: Calculated at Checkout
$167.37 inc GST
$152.15 ex GST
Hurry up! Current stock:

Milesight LoRaWAN EM320-TH Temperature and Humidity Sensor

$167.37 inc GST
$152.15 ex GST

With FDA-approved food contact materials, EM320-TH eliminates any potential health concerns and provides proven safety when it comes into contact with the food.  This sensor can store up to 3000 sets of historical data records with time stamps.  When the connection fails, the EM320-TH will continue to collect and store environment data.  Once reconnected, the data collected during that period will be retransmitted to the gateway, thus avoiding data loss.  This feature is appropriate for applications that lay emphasis on information and data integrity. With the feature of easy installation, and the ability to store data when the network fails, EM320-TH Magnetic version is suitable for Colds Chain which requires constant monitoring and data tracking.  The food-grade enclosure provides a double guarantee when comes into contact with cargo such as food, beverage, and pharmaceuticals. Suitable for, Smart Agriculture, Refridgeration, Industrial Kitchens and Catering.

Features:

  • Food-safe and IP67-rated enclosure
  • Data storage and retransmission
  • Magnetic/Standard versions for versatile applications
  • Optimized accuracy and resolution with the best price competitiveness
  • Compliant with Mlesgiht IoT Cloud



Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement
Temperature Range -30°C to +70°C
Temperature Accuracy 0°C to +70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C)
Temperature Resolution 0.1°C
Humidity Range 0% to 100% RH
Humidity Accuracy 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Humidity Resolution 0.5% RH
Operation
Power On & Off NFC, Power Button (Internal)
Configuration NFC Configuration via Mobile App
Physical Characteristics
Power Supply 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries)
Battery Life 10 years (10 min interval)
Operating Temperature -30°C to +70°C
Relative Humidity 0% to 100% (non-condensing)
Ingress Protection IP67
Dimension 88.5 × 85.3 × 27 mm (3.48 × 3.36 × 1.06 in)
Installation Wall Mounting
Regulatory CE, FCC, RoHS
General Information
Manufacturer: Milesight
Manufacturer Part Number: EM320-TH-915M
Barcode: 6974225037872
Packaging Details
Weight: 1.00 KGS
Width: 5.00 (cm)
Height: 8.00 (cm)
Depth: 1.00 (cm)
