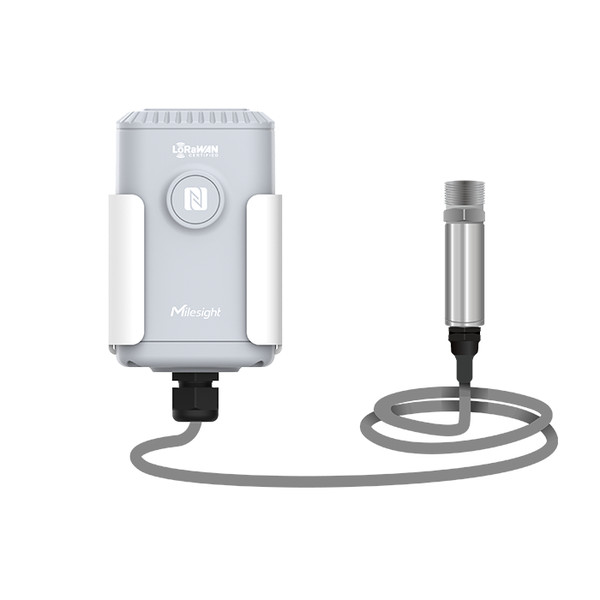

Milesight EM500-SWL-L010 LoRaWAN Submersible Water Level Sensor, IP67, 10m

0 review Write a Review

Discover the Milesight EM500-SWL-L010 LoRaWAN Submersible Water Level Sensor with 10m range and IP67 protection. Reliable for monitoring water levels. By Milesight.

SKU: IOT-UR-00037

MPN: EM500-SWL-AU915M PN:L010

Shipping: Calculated at Checkout

$836.85 inc GST

$760.77 ex GST

Hurry up! Current stock:

Quantity:

Milesight EM500-SWL-L010 LoRaWAN Submersible Water Level Sensor, IP67, 10m

$836.85 inc GST

$760.77 ex GST

Product Details
Specifications
Additional Information

Product Details

The Milesight EM500-SWL-L010 is designed for measuring liquid levels in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology the EM500-SWL can work up to 10 years with an 19000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM500-SWL is widely used for applications like tank level monitoring, river level monitoring, etc.

Features:

10m cable
Not Affected by Foam, Wind, or Rain
Customizable Measuring Range
Customizable for Oil and Other Non-corrosive Media
IP67 Rated Waterproof Performance
10 Years Long Battery Life
LoRaWAN® Wireless Deployment
Milesight IoT Cloud
Easy Configuration via NFC

Applications:

Water tank level monitoring
Water resource level monitoring
ISO tank level monitoring
Waste water tank monitoring
Oil store tank level monitoring

Wireless Transmission

Specification	Description
Technology	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A

Measurement

Specification	Description
Pressure Type	Gauge Pressure
Range	0 ~ 3m/5m/10m (H2O) (Customizable up to 200 m and for other liquids)
Accuracy	± 0.5% FS
Resolution	0.01 m
Long-term Stability	≤ ± 0.3% FS/year

Operation

Specification	Description
Power On & Off	NFC, Power Button (Internal)
Configuration	Mobile App (via NFC) or PC software (via USB Type-C)

Physical Characteristics

Specification	Description
Cable Length	At least 1-1.5m longer than measuring range
Power Supply	19000 mAh Li-SOCL2 battery (ER34615)
Battery Life*	10 years (10 min interval)
Operating Temperature	-30°C to +70°C (Transceiver) -10°C to +70°C (Level Sensor)
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP67 (Transceiver) IP68 (Level Sensor)
Dimension	Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Level Sensor: 140 × ф28 mm (5.5 × ф1.1 in)
Installation	Pole, wall or DIN Rail Mounting

Approvals

Specification	Description
Regulatory	CE, FCC, RoHS

Additional Information

Datasheet

General Information
Manufacturer:	Milesight
Manufacturer Part Number:	EM500-SWL-AU915M PN:L010
Barcode:	6974225031900
Packaging Details
Weight:	1.00 KGS
Width:	7.00 (cm)
Height:	10.00 (cm)
Depth:	6.00 (cm)
