Milesight EM500-LGT LoRaWAN Light Sensor, IP67, 0 ~ 100000 lux

Previous Next

Milesight

Milesight EM500-LGT LoRaWAN Light Sensor, IP66, 0 ~ 100000 lux

0 review Write a Review

The Milesight EM500-LGT LoRaWAN Light Sensor, IP67/IP65, 0 ~ 100000 lux works perfectly with Milesight IoT Cloud (Web & App), which allows you to monitor your data in the office or on the go.With a drag-and-drop experience, Milesight IoT Cloud pr…

SKU: IOT-UR-00033

MPN: EM500-LGT-AU915M PN:RY

Shipping: Calculated at Checkout

$482.65 inc GST

$438.77 ex GST

Hurry up! Current stock:

Quantity:

Milesight EM500-LGT LoRaWAN Light Sensor, IP66, 0 ~ 100000 lux

$482.65 inc GST

$438.77 ex GST

Product Details
Specifications
Additional Information

Product Details

Today, farming is barely sustainable without implementing modern farm technologies. When it comes to growing crops, it's a balancing act. You need just the right amount of sun, water, and soil composition to keep the plants happy and blooming. The Milesight EM500-LGT is specifically esigned for measuring light in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, the EM500-LGT can work up to 10 years with a 19000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

The Milesight EM500-LGT is widely used for outdoor applications like smart agriculture, urban lighting, etc.

Features:

Accurately detect any light changes
Measuring ranges of 0 to 100,000 lux
1 second fast response times
10-year battery life with a low maintenance cost - built-in 19000 mAh high-capacity battery.
LoRaWAN wireless transmission
Configure the device via NFC
Monitor your data in the office or on-the-go with Milesight IoT Cloud.

Qty discounts available. For more information or to discuss purchasing this product, please submit the form below.

Specifications

Wireless Transmission

Specification	Description
Technology	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A

Measurement

Specification	Description
Connection Type	3-wire connection
Range	T050: -200 °C to +50 °C T200: -50 °C to +200 °C T500: -50 °C to +500 °C T800: -50 °C to +800 °C (Customizable from -200 °C to +800 °C)
Accuracy	±0.5°C
Resolution	0.1°C

Operation

Specification	Description
Power On & Off	NFC, power button (Internal)
Configuration	Mobile App (via NFC) or PC software (via USB Type-C)

Physical Characteristics

Specification	Description
Cable Length	1.5 m (Customizable)
Probe Type	Straight tube (Customizable)
Power Supply	19000 mAh Li-SOCL2 battery (ER34615)
Battery Life*	10 years (10 min interval)
Operating Temperature	-30°C to +70°C
Relative Humidity	0% to 100% (non-condensing)

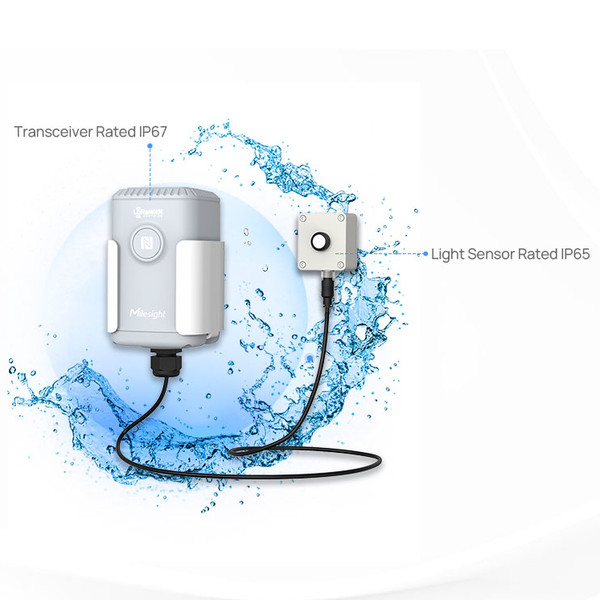

Ingress Protection	Transceiver: IP67, Sensor: differ based on temperature ranges
Dimension	105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)
Installation	Pole, wall or DIN Rail Mounting

Approvals

Specification	Description
Regulatory	CE, FCC, RoHS

Additional Information

Datasheet

General Information
Manufacturer:	Milesight
Manufacturer Part Number:	EM500-LGT-AU915M PN:RY
Barcode:	6974225035540
Packaging Details
Weight:	0.20 KGS
Width:	7.00 (cm)
Height:	15.00 (cm)
Depth:	6.00 (cm)
