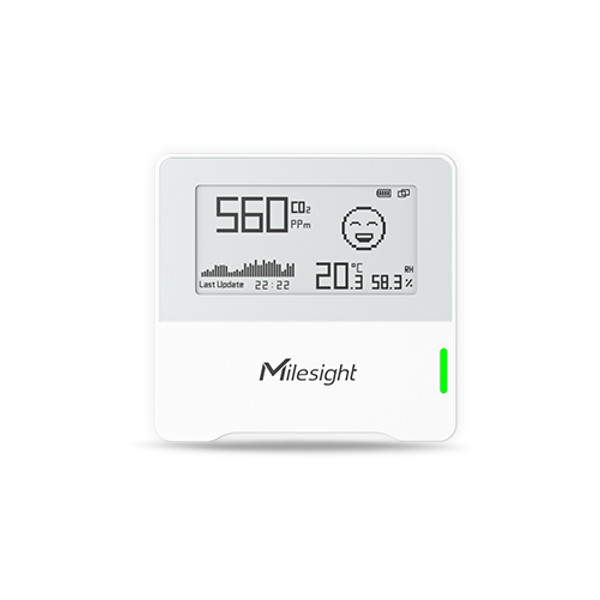

Milesight AM103-915M IAQ Indoor Ambience Monitoring Sensor E-ink Screen

0 review Write a Review
The AM103-915M Ambience Monitoring Sensor is the perfect way to monitor the air quality in offices, commercial and industrial environments.
SKU: IOT-MI-00009
MPN: AM103-915M
Shipping: Calculated at Checkout
$506.00 inc GST
$460.00 ex GST
Hurry up! Current stock:

Milesight AM103-915M IAQ Indoor Ambience Monitoring Sensor E-ink Screen

$506.00 inc GST
$460.00 ex GST
Requires a Gateway to utilise the IoT Cloud software

The AM103-915M Ambience Monitoring Sensor is the perfect way to monitor the air quality in offices, commercial and industrial environments. The precision built-in sensors measure relative humidity, carbon dioxide levels and temperature. By monitoring these things, you can always be aware of potential problems before they arise.
The Emotion Traffic Light Status Indicator is the ideal way to monitor and display real-time data on what matters most in your indoor air quality. One critical element in a comprehensive IoT network is the gateway. A gateway is typically considered a robust physical box that acts as an entry point for IoT devices to the cloud. The hardware and rich software inside the box can perform many essential tasks. In relation to the LoRaWAN architecture, the LoRaWAN gateway forms the bridge between the source of data (sensors in the field) and people.
  • Detect CO2, Humidity and Temperature
  • Traffic Light Status Indicator
  • Hibernation Mode for Low Power Consumption
  • Wireless Installation with Anti-Theft Protection
  • Support Data Storage and Retransmission
  • 2.13 -Inch E-Ink Screen (AM103)
  • Vivid Emoticon Indication (AM103)
  • Battery Life up to 3 Years (AM103)

Wireless Transmission

Specification Description
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A

Sensors

Specification Description
Temperature
  • Operating Principle: Digital CMOSens® technology (MEMS)
  • Range: -20°C - 60°C
  • Accuracy: ± 0.2°C
  • Resolution: 0.1°C
Humidity
  • Operating Principle: Digital CMOSens® technology (MEMS)
  • Range: 0% - 100% RH
  • Accuracy: ± 2% RH
  • Resolution: 0.5% RH
Carbon Dioxide (CO2)
  • Sensor Type: Nondispersive Infrared (NDIR)
  • Range: 400 to 5000 ppm
  • Accuracy: ± (30 ppm + 3 % of reading) (0°C to +50°C)
  • Resolution: 1 ppm

Display & Configuration

Specification Description
Display AM103: 2.13-inch Black & White E-Ink Screen, AM103L: Not Supported
Button 1 × Power Button
LED 1 × Traffic Light Status Indicator
Configuration Mobile App via NFC

Physical Characteristics

Specification Description
Power Supply 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life* AM103: Around 3 Years, AM103L: Around 4 Years (10 min interval, 25°C)
Operating Temperature -20°C to +60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP30
Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation Wall Mounting
General Information
Manufacturer: Milesight
Manufacturer Part Number: AM103-915M
Barcode: 90009786
Packaging Details
Weight: 1.00 KGS
Width: 5.00 (cm)
Height: 5.00 (cm)
Depth: 5.00 (cm)
