The Hikvision HiLook HA-KIT-A2 4WIRE 2MP Kit offers a sophisticated video intercom solution for residential and commercial use. Featuring a surface-mounted indoor station and a high-resolution villa door station, this kit is designed for both convenience and quality. The system includes everything needed for an easy and cost-effective installation, providing users with seamless communication and video monitoring.
Key Features:
- 7-inch touch screen
- Plug & Play installation
- Mobile app support
- 2MP HD camera with high-quality video imaging at the door station
- IP65-rated door station
- Low illumination IR night vision with a 3 m range
- True WDR (Wide Dynamic Range)
- Two-way audio communication with built-in omnidirectional microphone and loudspeaker
- Motion detection support
- Supports H.264 video compression standard
- Wide field of view (144° horizontal, 95° vertical)
User-Friendly Indoor Station
The indoor station in the HA-KIT-A2 features a 7-inch TFT touch screen with a resolution of 1024 × 600, offering users a simple and intuitive interface. With capacitive touch control and adjustable brightness, it’s designed for comfort and ease of use. The device supports Wi-Fi connectivity for additional flexibility and can connect seamlessly to the video intercom system.
High-Definition Video and Imaging

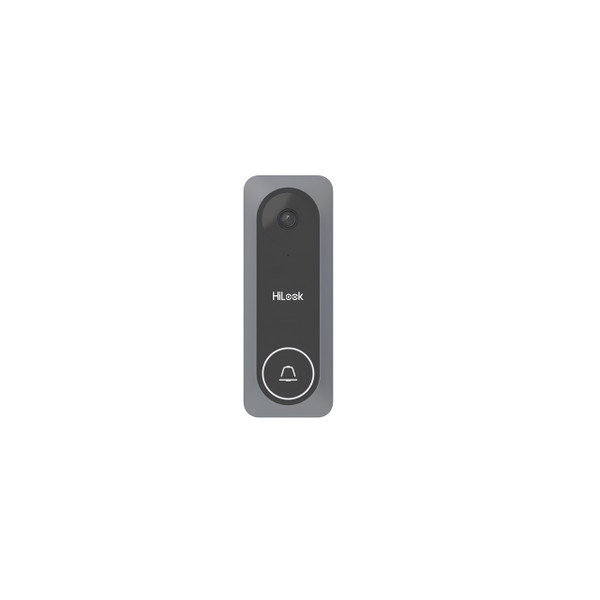

The villa door station provides sharp 2MP HD imaging with a wide 144° horizontal field of view, ensuring clear video footage of visitors. Equipped with True WDR and low illumination IR for night vision up to 3 metres, it delivers consistent video quality in all lighting conditions. The camera supports H.264 video compression, ensuring efficient storage without compromising image quality.
Easy and Efficient Installation
The two-wire connection between the indoor and outdoor stations ensures a straightforward and cost-effective installation process. The system supports both surface and flush mounting options, providing flexibility depending on installation preferences. The door station features a user-friendly design with a built-in camera, name tag, and LED indicators for communication status.
Reliable Outdoor Performance
Designed for durability, the villa door station has an IP65 protection rating, making it water-resistant and suitable for use in outdoor environments. It also includes a tamper switch for added security, ensuring that the system remains secure against unauthorised access. The station operates in a wide temperature range of -40°C to +60°C, making it suitable for various climates.
Advanced Communication Features
The intercom system supports two-way audio communication, with noise suppression and echo cancellation for clear conversations. The indoor station is equipped with a built-in microphone and loudspeaker, while the door station features an omnidirectional microphone and speaker for high-quality audio. The system supports G.711 audio compression, ensuring smooth and efficient audio streaming.
Scalable and Expandable System
The HA-KIT-A2 offers scalability, allowing for up to 8 linked indoor stations and up to 2 door stations. The system supports alarm inputs and relay outputs, adding extra layers of security and functionality. With its flexible connectivity options, including Ethernet and Wi-Fi, the system can be easily integrated into various setups and expanded as needed.
