EZVIZ

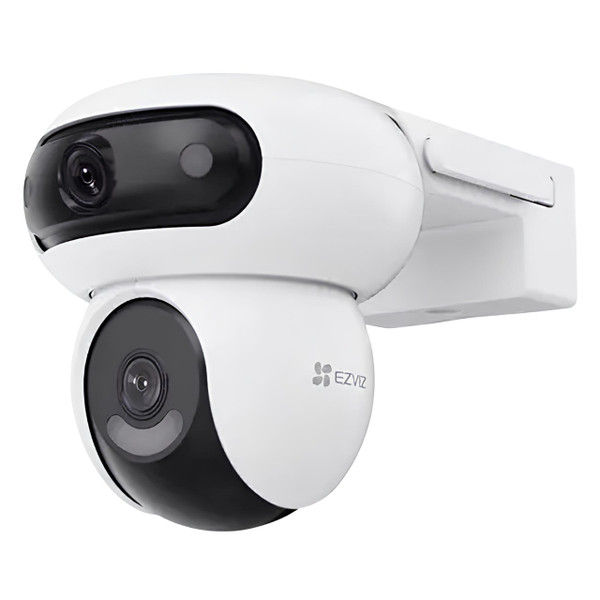

The HB90 Dual camera delivers flexible, high-performance surveillance with dual 2K+ lenses and independent pan/tilt functionality. Powered by a built-in rechargeable battery, it supports AOV 2.0 for all-day recording, AI-powered motion detection, and smart tracking. With Wi-Fi 6 connectivity and voice assistant integration, this camera offers wide and close-up coverage simultaneously—all without the need for wiring or base stations.
| Product Specifications | |
|---|---|
| Camera Model | CS-HB90/SP-R100 (4MP + 4MP) |
| Max Resolution | 2K+ (2560 × 1440) |
| Top Lens | 2.8 mm @ F1.2, Diagonal 110°, Horizontal 96°, Vertical 54° |
| Bottom Lens | 6 mm @ F1.2, Diagonal 60°, Horizontal 52°, Vertical 28° |
| Pan/Tilt | Top: Pan 220°, Tilt 10° / Bottom: Pan 324°, Tilt 90° |
| Night Vision | Color and IR up to 35 m |
| Battery Capacity | 10,400 mAh rechargeable lithium |
| Power Supply | DC 5V / 2A (solar panel not included) |
| Max Power Consumption | 10 W |
| AI Detection | Human and vehicle shape detection, auto tracking |
| Video Compression | H.265 / H.264 |
| Frame Rate | Up to 15 fps (adaptive) |
| Audio | Two-way talk, self-adaptive bit rate |
| Storage Options | MicroSD up to 512 GB, EZVIZ CloudPlay |
| Connectivity | Wi-Fi 6 (2.4 GHz), Bluetooth supported |
| Weatherproof Rating | IP65 |
| Operating Temperature | -20°C to 50°C |
| Camera Dimensions | 135 × 136.5 × 229.5 mm |
| Net Weight | 890 g |
| Certifications | CE, REACH, WEEE, RoHS |
| General Information | |
|---|---|
| Manufacturer: | EZVIZ |
| Manufacturer Part Number: | HB90 Dual Rotation Lens Kit |
| Barcode: | SEC-EZ-00027 |
| Packaging Details | |
| Weight: | 1.93 KGS |
| Width: | 21.00 (cm) |
| Height: | 18.00 (cm) |
| Depth: | 30.00 (cm) |
