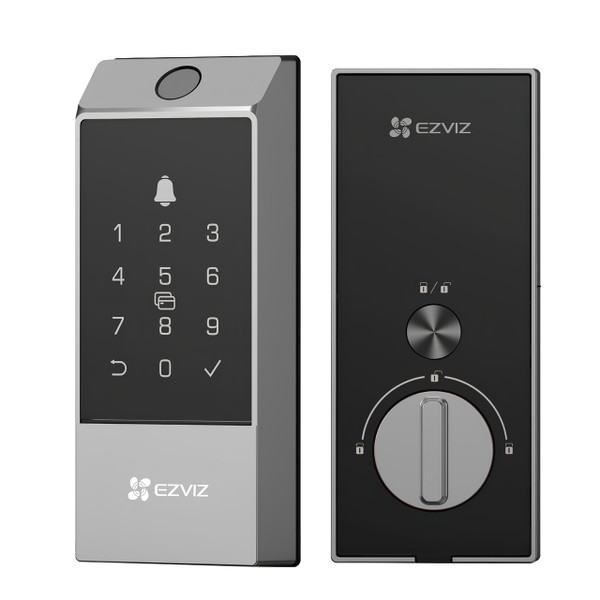

The DL05 is a keyless smart fingerprint lock that combines intelligent control, robust safety, and modern design. Featuring fingerprint, passcode, proximity card, and app-based unlocking, it supports both Wi-Fi and Bluetooth connectivity. The included 6068 mortise lock body and child safety features ensure solid physical protection, while the EZVIZ App enables full remote access and real-time alerts.
Designed to deliver convenience without compromising security, the DL05 is ideal for keyless smart entry and remote-controlled home access.
| Product Specifications | |
|---|---|
| Model | CS-DL05-R200-WBCP-GR(M) |
| Unlock Methods | Fingerprint, PIN code, Bluetooth, App control, Proximity card, Mechanical key |
| User Capacity | 50 total users |
| Fingerprint Capacity | 50 fingerprints |
| Passcode Capacity | 50 codes (6–10 digits) |
| Card Capacity | 50 cards (2 included) |
| Temporary Codes | Supported |
| Anti-Peeping Entry | Supported (up to 20 digits) |
| Auto Lock | Yes (after valid unlock) |
| Privacy Mode | Enabled via app |
| Child Safety Lock | Supported |
| Remote Unlock | Via EZVIZ App (Wi-Fi) |
| Connectivity | 2.4 GHz Wi-Fi and Bluetooth |
| Tamper Alarm | Yes (removal or forced entry) |
| Emergency Access | USB-C charging port and mechanical key |
| Weatherproof Rating | IP65 (front panel only) |
| Door Thickness Support | 30–110 mm |
| Operating Temperature | -25°C to 70°C |
| Operating Humidity | 10%–95% RH |
| Power Supply | 8 × AA alkaline batteries |
| Panel Size | 360 × 67 × 27 mm |
| Material | Aluminium alloy |
| Color | Metallic grey |
| Lock Cylinder | 5085 / 6068 compatible |
| Certifications | CE, EMC, LVD, RED, RoHS, REACH, WEEE, UKCA |
| General Information | |
|---|---|
| Manufacturer: | EZVIZ |
| Manufacturer Part Number: | DL05 (6068 lock body) |
| Barcode: | SEC-EZ-00030 |
| Packaging Details | |
| Weight: | 4.00 KGS |
| Width: | 7.00 (cm) |
| Height: | 3.00 (cm) |
| Depth: | 36.00 (cm) |
