Capture every detail at your doorstep with the EZVIZ DB2 doorbell's 2K resolution. Unlike conventional doorbell cameras, the DB2 ensures crystal-clear video quality, even at night. With its infrared night vision range of up to 5 metres, you’ll always be able to see who’s there, whether day or night.
See more with the DB2's ultra-wide 176° diagonal field of view. This expansive lens lets you capture visitors from head to toe, ensuring you never miss a delivery or visitor. The DB2 also features adjustable mounting plates to optimise the viewing angle and enhance your security coverage.
The DB2 is equipped with advanced PIR and human shape detection technologies, allowing it to intelligently distinguish between people, animals, and other moving objects. Customise the sensitivity for alerts based on your environment, ensuring that you're notified only when needed.
Add an extra layer of privacy with the DB2’s voice changer feature. Ideal for those who prefer to stay anonymous, the voice changer allows you to respond to visitors without revealing your identity. Additionally, you can set up no-filming privacy zones within the EZVIZ app, keeping your personal space secure.
Powered by a rechargeable 5200mAh lithium battery, the DB2 offers up to 115 days of battery life, depending on usage. With a simple setup and no need for wiring, this doorbell ensures convenience and peace of mind, with minimal maintenance required.

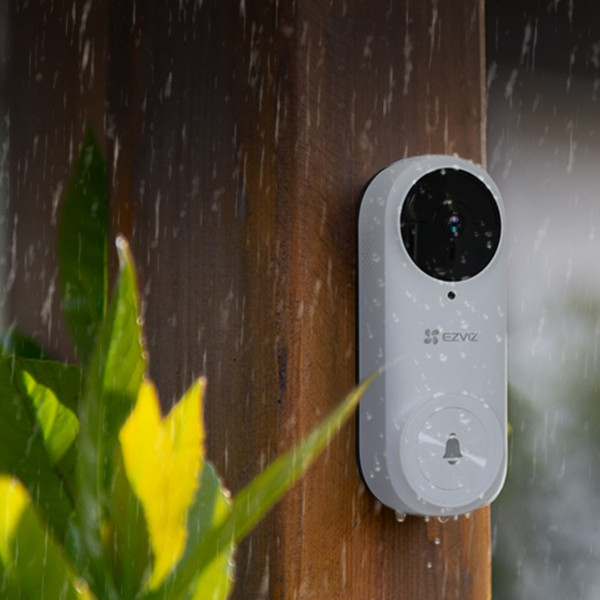

Built to withstand the elements, the DB2 features an IP65 weatherproof rating, ensuring it operates in rain, snow, or sunshine. Its tamper alarm will notify you instantly if someone attempts to remove or damage the device, keeping your home secure at all times.
Enjoy flexible storage with the DB2. It supports a microSD card of up to 256GB for local storage, ensuring your recordings are secure even if the device is damaged. Alternatively, you can opt for EZVIZ's CloudPlay service for encrypted, unlimited cloud storage, offering added protection for your videos.
Category | Specification | Details |
---|---|---|
Model Version | CS-DB2-A0-2C3WPB | EZVIZ 2K Video Doorbell |
Camera | Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
Lens | Specifications | 2.0 mm @ F2.0 View angle: 176° (Diagonal) |
Video Parameters | Max. Resolution | 2000 × 1504 |
Video Compression | Compression Standard | H.265 / H.264 |
Frame Rate | Max: 15fps Self-Adaptive during network transmission |
|
PIR Sensor | Sensing Angle | 100° |
Sending Distance | Max. 5 m | |
Wi-Fi | Standard | IEEE802.11b 802.11g 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
Channel Bandwidth | Supports 20 MHz | |
Security | 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK |
|
Battery | Capacity | 5200 mAh rechargeable lithium battery |
Power Supply | DC5V±10% 2A | |
Power Consumption | Max. 2W | |
Power | Chime Power Supply | AC 110 ~ 240V |
Chime | Size | 100 × 55 × 35 mm |
Audio Output | 72 dB within 1 meter | |
Storage | Supports microSD card up to 256 GB | |
General | Operation Conditions | -20°C to 50°C Humidity 95% or less (non-condensing) |
Ingress Protection Grade | IP65 | |
Weight | 241.35 g | |
Size | 150 × 58 × 32 mm | |

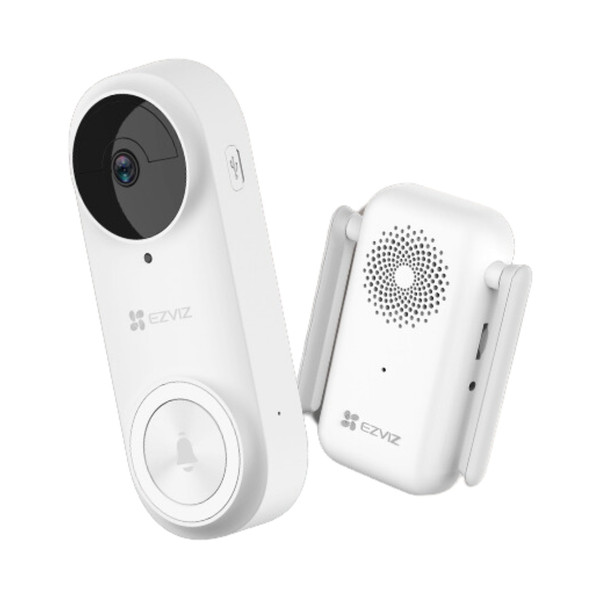

In the Box | Included Items | DB2 Video Doorbell Chime, Mounting Plates Inclined Mounting Plates Screwdriver Quick Start Guide |
Certifications | Types | UL CE FCC REACH WEEE RoHS |
General Information | |
---|---|
Manufacturer: | EZVIZ |
Manufacturer Part Number: | CS-DB2 (5MP) |
Barcode: | CS-DB2 (5MP) |
Packaging Details | |
Weight: | 0.38 KGS |
Width: | 19.00 (cm) |
Height: | 9.00 (cm) |
Depth: | 28.00 (cm) |
