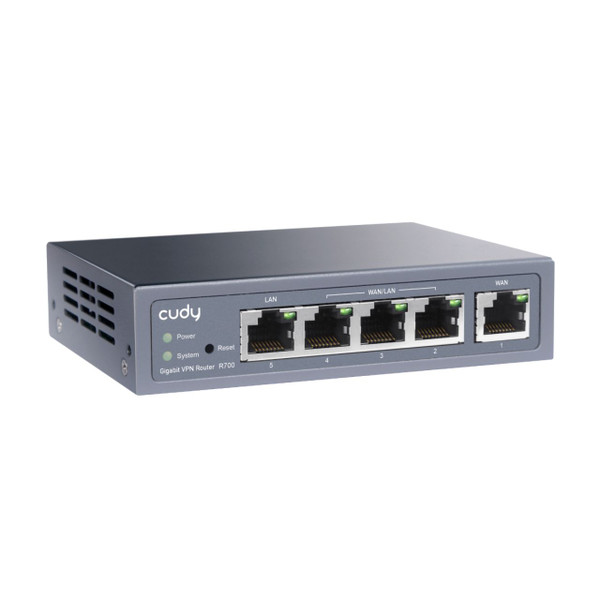

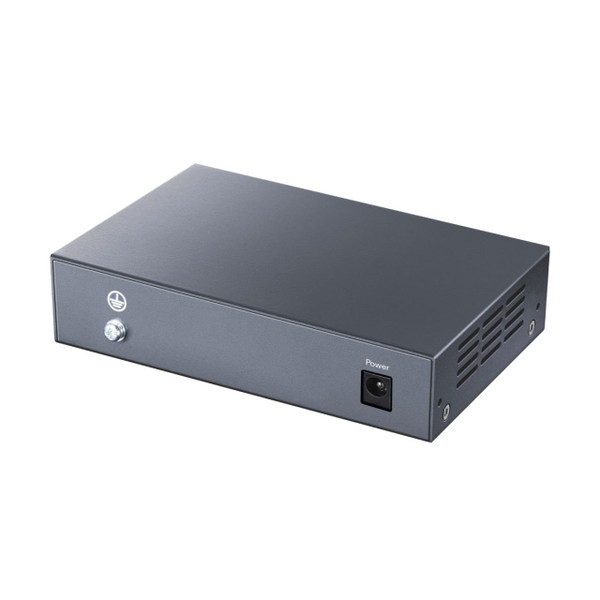

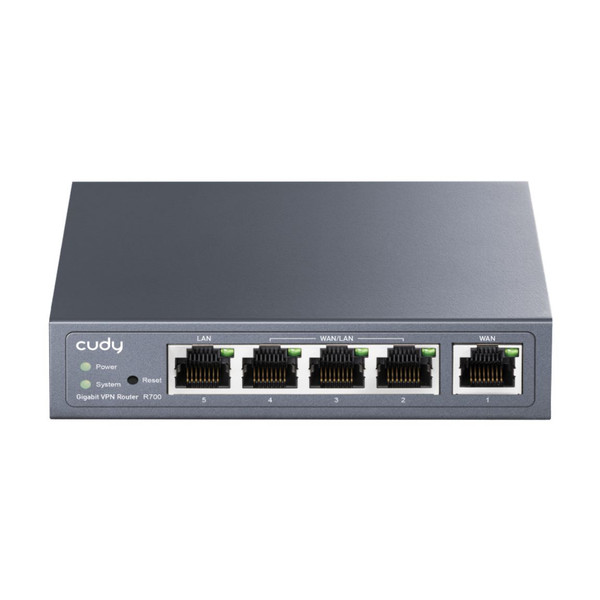

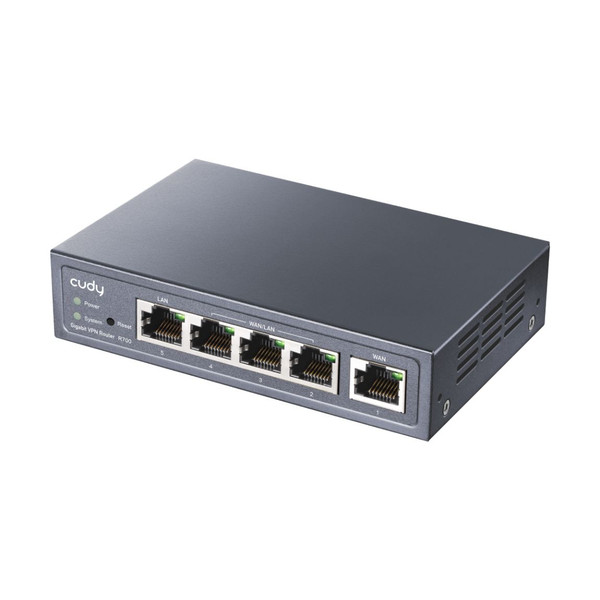

Cudy R700 Gigabit Multi-WAN VPN Router
Cudy R700 Gigabit Multi-WAN VPN Router
Introducing the Cudy Gigabit Multi-WAN VPN Router, designed to elevate your network infrastructure with advanced connectivity and security features. This versatile router is equipped with multiple Gigabit Ethernet ports, including one dedicated WAN port and three configurable WAN/LAN ports, allowing for exceptional speed and network flexibility.
With support for up to four WAN connections, the R700 offers robust VPN capabilities including PPTP, L2TP, OpenVPN, WireGuard, and IPSec. These features ensure secure and reliable remote access, while its link backup and load balancing functions optimise your network performance and reliability. The router supports a range of encryption and authentication protocols, including AES and SHA, to safeguard your data transmissions.
The R700's user-friendly interface provides comprehensive management options such as static routing, policy routing, and dynamic DNS. It also includes firewall protections like SPI and DoS to enhance your network's security, alongside features for MAC and IP filtering.
The router is equipped with a practical web management interface, supporting remote management, configuration export/import, and diagnostics tools. It operates efficiently across a wide temperature range, making it suitable for various environments.
Key Features:
- 1× GbE WAN, 3× GbE WAN/LAN, 1× GbE LAN
- Load Balance or Link Backup Modes
- VPN, Firewall, Routing, Multi-Net DHCP
- Gigabit Ethernet Ports
- Up to 4 WAN Ports
- PPTP/L2TP/OpenVPN/WireGuard/IPsec VPN
- Link Backup and Load Balance
Enhance Your Network
Category | Specification | Details |
---|---|---|
Model Version | Product Model | R700 |
Standards and Protocols | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier |
Interface | Ports | 1 Gigabit WAN port, 3 Gigabit LAN/WAN ports, 1 Gigabit LAN port |
Network Media | 10BASE-T, 100BASE-TX, 1000BASE-T | |
Reset Button | Yes | |
Power Supply | Adapter | External 12V/1A DC Adapter |
Memory | Flash Memory | 16 MB NOR Flash |
RAM | 128 MB DDR | |
LED Indicators | Indicators | PWR, SYS, WAN (Link/Act), LAN (Link/Act) |
Dimensions | Size | 119×85×28 mm |
Product Description | Type | Gigabit Multi-WAN VPN Router |
Routing | Features | IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN |
IPSec VPN Supported Features | Main, Aggressive Negotiation Mode, 3DES, AES128, AES192, AES256 Encryption Algorithm, IKE v1/v2, MD5, SHA1, SHA2, SHA254, SHA386, SHA512 Authentication Algorithm, Dead Peer Detection (DPD) | |
PPTP VPN Supported Features | PPTP VPN Server, PPTP VPN Client, PPTP with MPPE Encryption | |
L2TP VPN Supported Features | L2TP VPN Server, L2TP VPN Client, L2TP Over IPSec | |
OpenVPN Supported Features | OpenVPN Server, OpenVPN Client | |
Firewall | Features | SPI, DoS, Block Ping from WAN |
Filtering | Features | MAC Filtering, Domain Filtering, IP Filtering |
Concurrent Session | Maximum Sessions | 15,360 |
New Sessions / Second Rate | 2,600 | |
WAN Connection Type | Types | Static IP, Dynamic IP, PPPoE |
DHCP | Features | DHCP Server, DHCP Address Reservation |
MAC Clone | Features | Modify WAN/LAN MAC Address |
IPv6 | Support | Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack) |
Load Balance | Features | Intelligent Load Balance, Link Backup (Timing, Failover), Online Detection |
Virtual Server | Features | Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec ALG, UPnP |
Maintenance | Features | Web Management Interface, Remote Management, Export & Import Configuration, Diagnostics (Ping & Traceroute & NSLookup), Syslog Support |
Certification | Certifications | CE, FCC, RoHS |

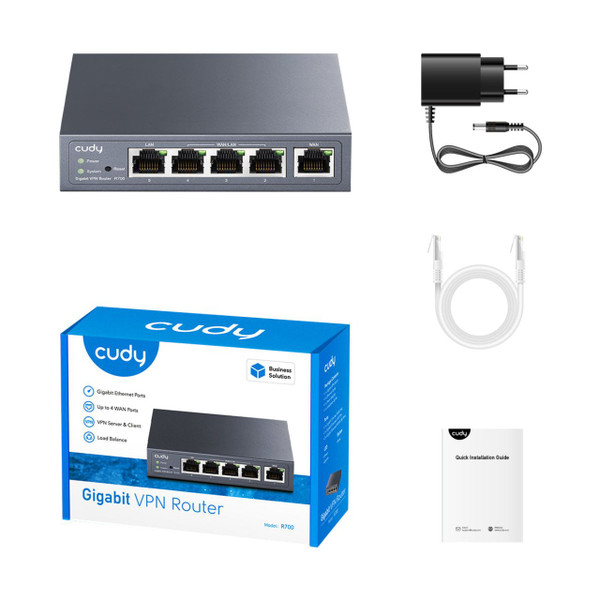

Package Contents | Includes | R700, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide |
System Requirements | Supported Systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) | |
Operating Humidity | 10% to 90% non-condensing | |
Storage Humidity | 5% to 90% non-condensing |
General Information | |
---|---|
Manufacturer: | Cudy |
Manufacturer Part Number: | R700 |
Barcode: | 6971690792985 |
Packaging Details | |
Weight: | 0.48 KGS |
Width: | 13.00 (cm) |
Height: | 7.00 (cm) |
Depth: | 19.00 (cm) |
